FreeScan Trak Pro 追蹤式雷射掃描系統,由Shining 3D自主研發,使用特色技術可通過光學追蹤器實時追蹤定位掃描頭的空間位置,來獲取大中型樣件完整準確的3D數據。掃描時無需貼點,節省大量時間,其適用於航空航天、汽車工業、軌道交通、能源領域等製造 業的中大型3D掃描靜態/動態場景。


{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.

Description

Portable wireless optical CMMmeasurement solutions



Wireless tracking laser scanningsystem Freescan Trak
Thundershooter holding scanning system without posting


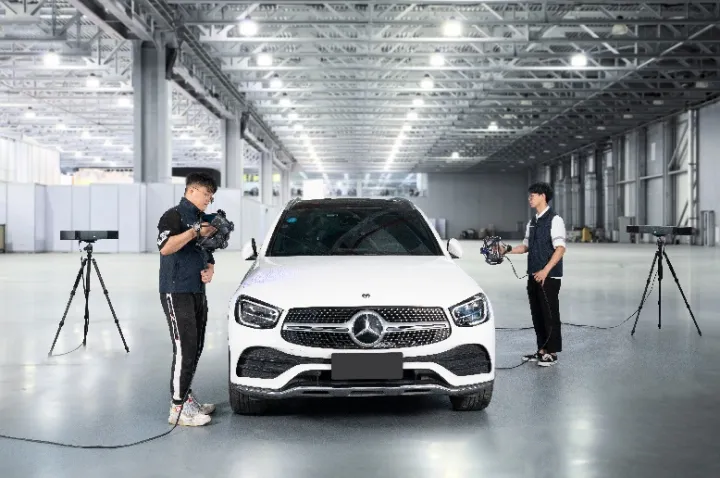

Optical trackers track thespatial position of the located scan head in real time.Without dots whenscanning, operators save a lot of time, and the process of scanning large andmedium-sized samples makes it easy to get 3D data with metering levelaccuracy.It is suitable for all kinds of static and dynamic application suing,including aerospace, automotive, shipbuilding, energy and other industries, thedemand for large scene 3D detection.


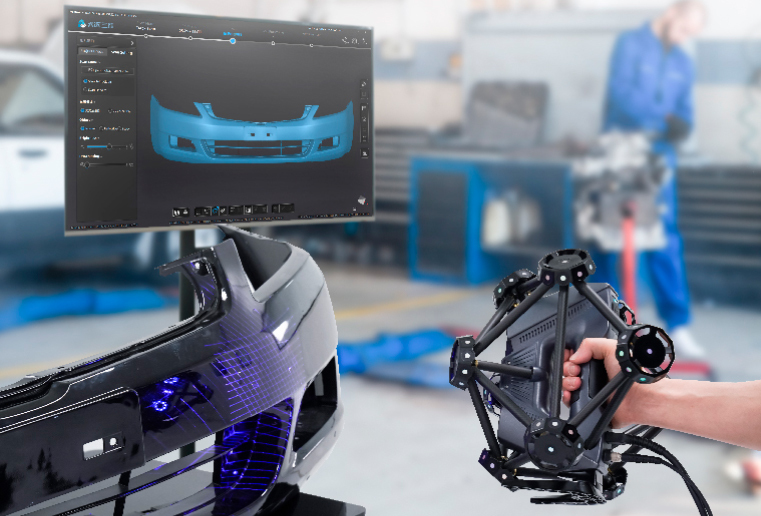

Freescan probe


Scanner

Stand-alone modeof workWireless solutionsLightweight


Stand-alone mode of work
The scanner has built-in LED light source,
Scanning as a stand-alone wireless handheld scanner

Wireless solutions
The scanner does not need to be connected to a calculator or optical tracker via a data cable.
Fast wireless measurement system with AirMaster

Lightweight
Weighs only 1.2kg and iseasy to operate




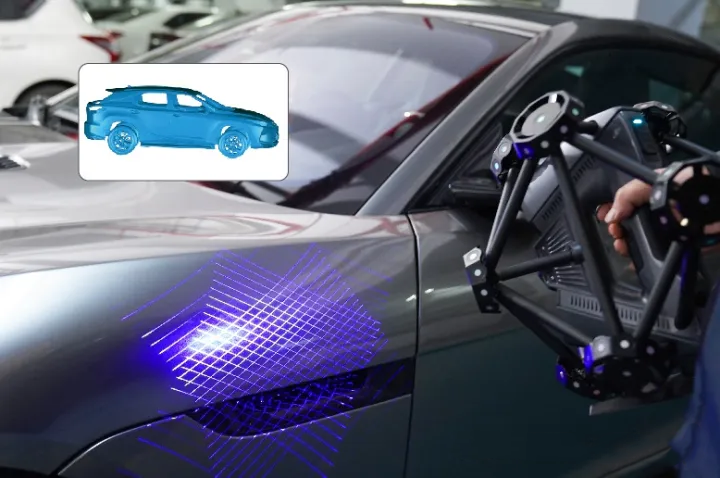

✦ Metering levelmeasurement  With up to 0.03mm accuracy, resolutionup to 0.05mm, and high system repeatability.

✦ Easy to operate  Built-in next-generation processor, noexternal cell, scan data can be directed to the work computer.FreeScan Trak canmeasure rates up to 70Hz.

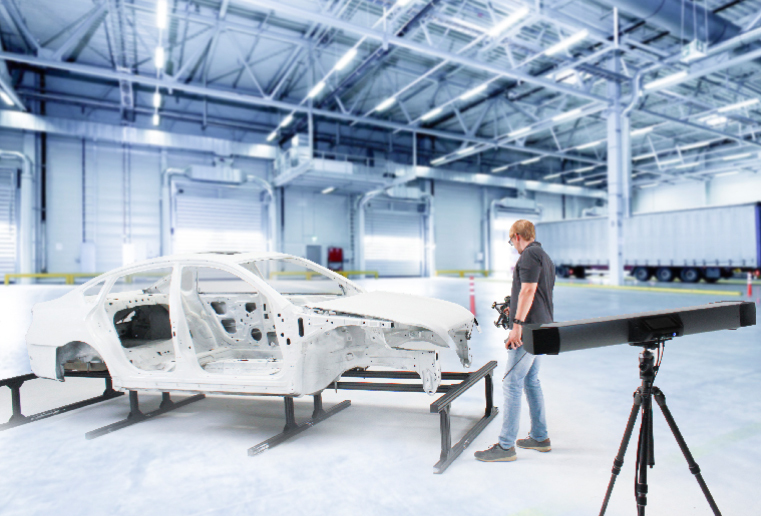

✦ Dynamic tracking  Based on the dynamic optical trackingprinciple, the system can track and locate the scanning head and accuratelymeasure the three-dimensional shape of the target in real time, enablinghigh-precision 3D scanning without posting.Unlike conventionalThunderBolt-holding scanners, FreeScan Trak's innovative working mode allowsusers to focus on the scanning process and getting results, rather thanspending time on preparation sessions such as cumbersome paste mark points.

✦ Wireless technology  Without cable connection snares, optical trackers andscanners are used to quickly build a 3D scanning measurement system withprecision wireless synchronization and high-speed wireless link transmissiontechnology, enabling unmarked, unconstrained "wireless freedom" 3Dscanning.

✦ High accuracy Accuracy up to 0.020mm, high repeatability. The volume accuracywithin 15m3 is up to 0.1mm.

✦ Dynamic reference Based on the dynamic optical tracking principle, the system candynamically track and locate the stylus and obtain the 3D coordinateinformation of the pen ruby probe in real time accurately, thus achieving fastand accurate contact 3D coordinate measurement.

✦ Measured freedom and flexibility No cable connection is required between the stylus and the opticaltracker to meet the needs of a diverse field environment.

✦ Real-time detection Use the stylus meter to obtain real-time CAD inspection reports.


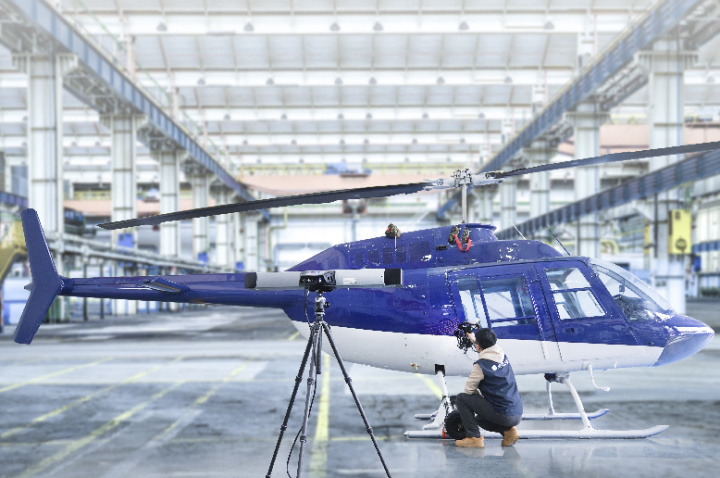

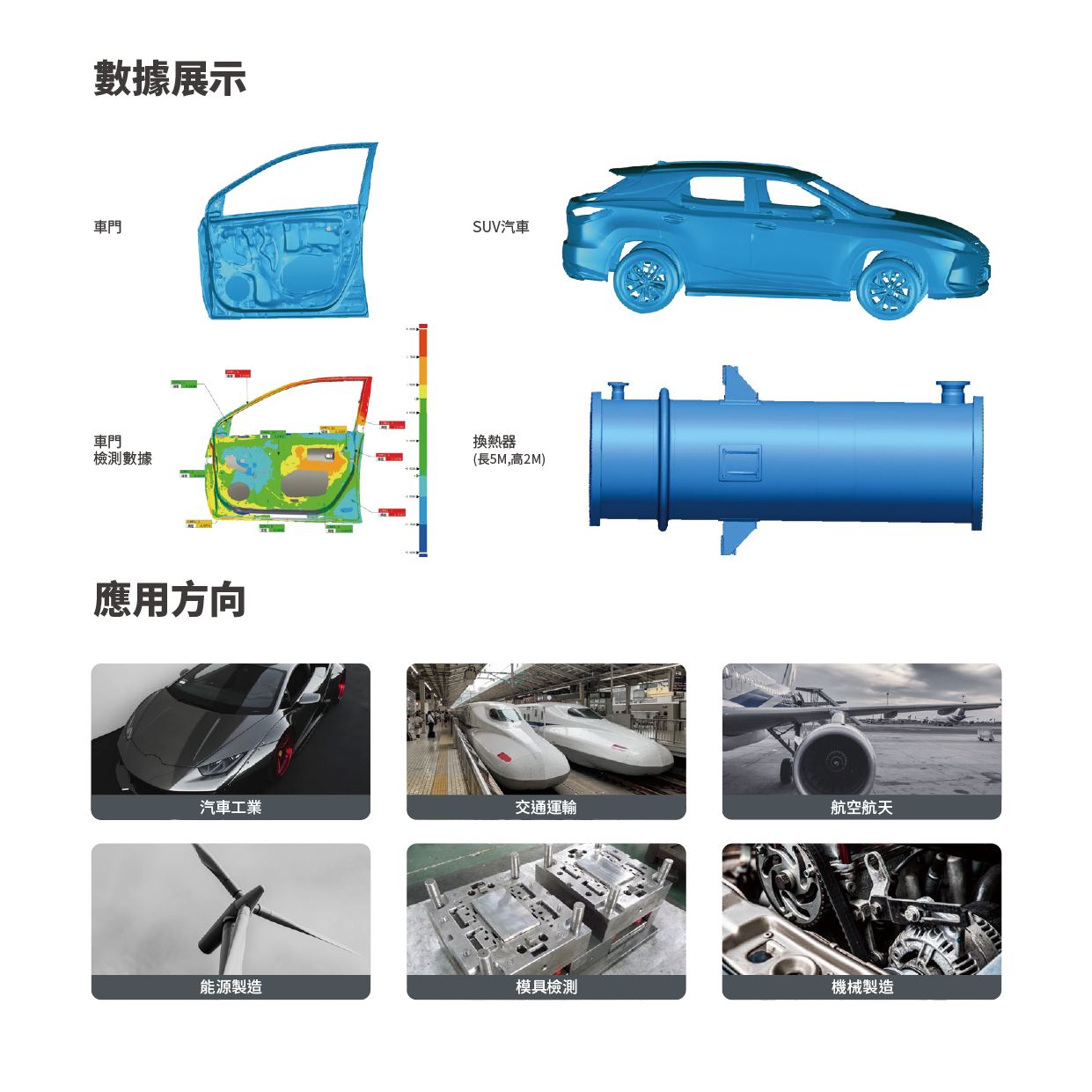

Application areas

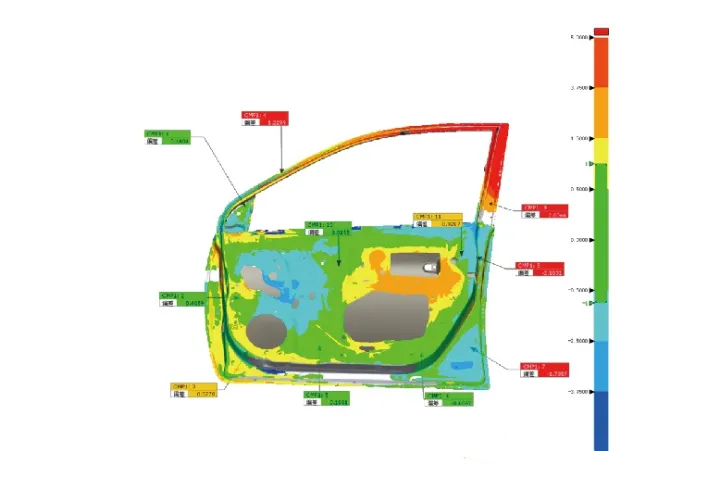

Detection
First sample detection
Production quality testing
Deformation Analysis
Positioning and part coordinate alignment Large-scale workwear inspection

Reverse engineering
Modeling
Maintenance, repair and refurbishment
Mold design
  Work-packing fixture design

Other applications
Dynamic tracking and positioning
Production line assembly and   commissioning

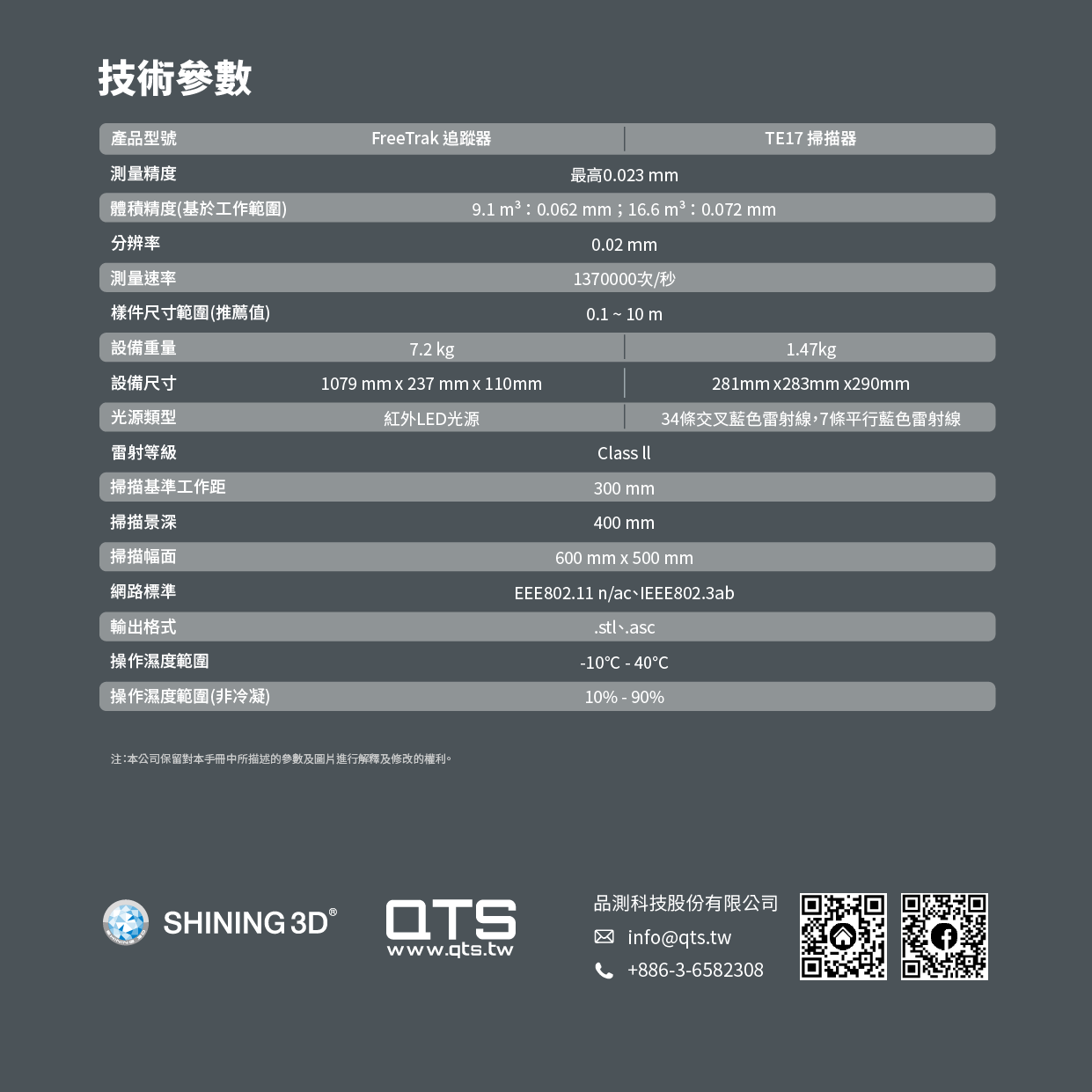

Productspecifications



FreeTrak

Freescan Trak

Precision

Up to 0.030 mm

Up to 0.030 mm

Volume accuracy

(based on operating range)

15m3 ,0.1mm

15m3 ,0.1mm

Resolution

0.050 mm

0.050 mm

MeasurementRate

480,000 measurements

per second

480,000 measurements

per second

Sample size range (recommended value)

0.26 m

0.26 m

Types of networks for use

Support for wireless and wired connectivity

Support for wireless and wired connectivity

Weight

7.2kg

1.2 kg (Scanner wireless scanning module) .900g (Airmaster wireless computing platform)

Dimensions (mm)

1079L x 237W x 110H

210L x 210W x 215

Light source

Infrared LED light source

Infrared LED Light Source - 7 Exciting Crosshairs plus a Straight

Laser level

N/A

Class 2

Reference distance

3000mm

300mm

Depth of field

2000mm

250mm

Scan area

3000 x 2500mm

275 x 250 mm

Network standards

IEEE802.11n/ac, IEEE802.3ab

Output format

.stl, .asc

Operating temperature range

540°C

Operating humidity range

(non-condensation)

1090%




FreeTrak

FreeTrak Probe

Accuracy

Up to 0.020 mm



Volume accuracy

15m3, 0.1mm



Single point repeatability

0.060mm



Measurement rate

Up to 70 measurements per second



Network standards

Support wireless and wired connection



Weight

7.2kg

580g

Dimensions (mm)

1079 Lx 237W x 110H

380L x 140W x 70H

Light

Infrared LED light source

N/A

Network standards

IEEE802.11n/ac, IEEE802.3ab



Operating temperature range

540°C



Operating humidity range

(non-condensation)

1090%
