Dental Model is a UV-Curable resin that is compatible with 395 ~ 405 nm resin 3D printers. DLP, LCD, and SLA desktop models are applicable. It has low shrinkage with excellent strength and high accuracy. It enables accurate mating and it’s perfect for dental printed parts.
Buy Together and Save More (At most {{ addItemQuantity }} item(s))
Not enough stock.
Your item was not added to your cart.
Not enough stock.
Please adjust your quantity.
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
Limit {{ product.max_order_quantity }} per order.
Only {{ quantityOfStock }} item(s) left.
Instructions for use
- Be sure to shake and mix well before use to avoid long-term precipitation.
- This material is a light-curing chemical. Rubber gloves must be worn during operation to avoid long-term contact with the skin to avoid allergies and itching.
- Or using special cleaning agent for cleaning.
- The exposure parameters of different brands of models will be different. It is recommended to print a calibration film to confirm whether the exposure parameters are appropriate for the first use.
Post-curing treatment
This material must undergo sufficient post-curing treatment after molding to achieve the best mechanical properties and surface dry and wear-resistant properties.
- UV post-curing in the 365~405nm light box for 10~60 minutes (depending on the color and thickness of the material, the thicker the thickness, the longer the post-curing time is required).It is not enough to use sunlight as the post-curing.
- It is recommended to use a special UV post-curing lamp for 3D printing in order to achieve the best results.
- If it can be combined with heat curing at 60℃ * 60 minutes, the toughness will be better.
Product packaging specifications
500g/1Kg black opaque plastic can.
Storage and transportation
- Product shelf life: 12 months
- This product is a light-sensitive material, avoid storing in direct sunlight, high temperature and humidity, etc.
Properties |
Method |
Parameter |
Hardness Shore D |
ASTM D2240 |
85 |
Tensile Strength (MPa) |
ASTM 638 |
29.75 |
Young’s Modulus (MPa) |
ASTM 638 |
1480 |
Elongation (%) |
ASTM 638 |
41.73 |
Notched Impact Strength |
ASTM D256 (J/m) |
36 |
Glass Transition Temperature (C) |
DSC |
60 |
Heat Deflection Temperature (C) |
ASTM D648 @ 0.46MPa |
65 |

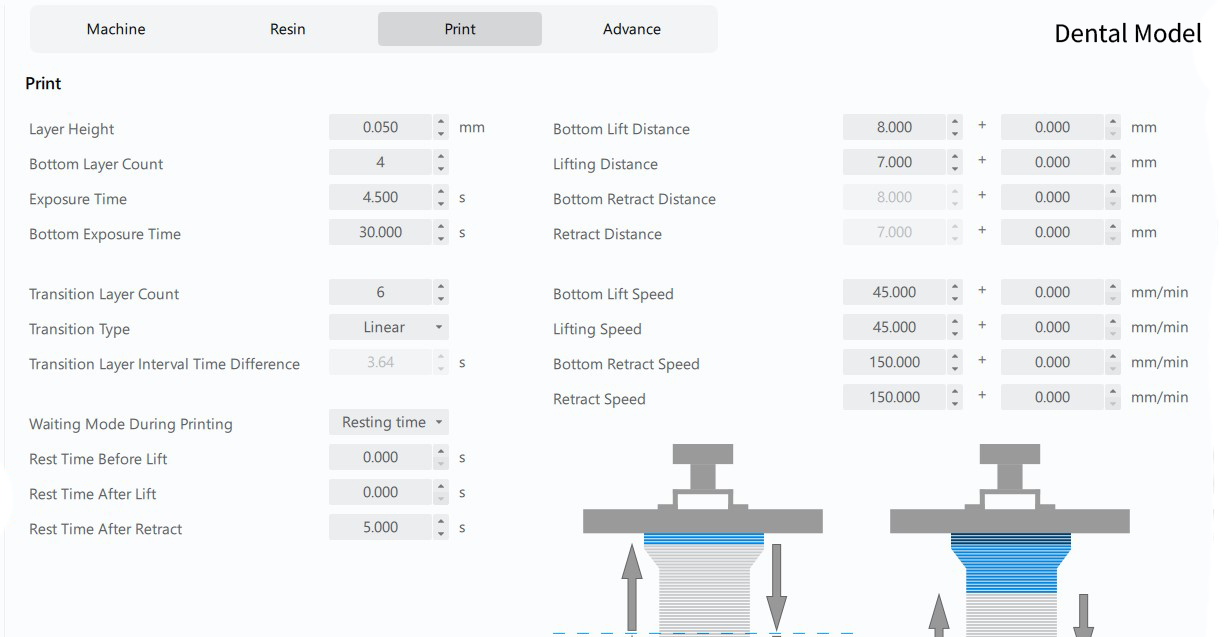

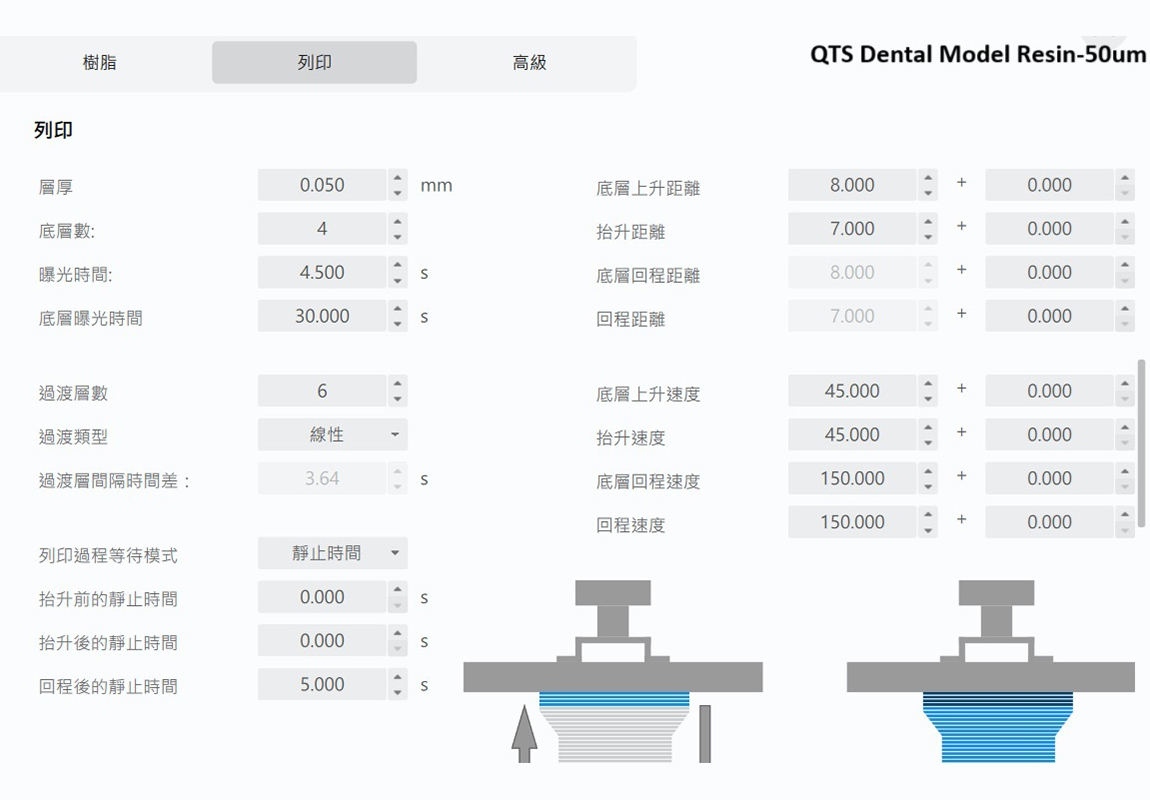

Recommended Printing Parameters:
Phrozen Make Color-LCD |
Phrozen Sonic mini Mono-LCD |
Miicraft 125 DLP |
|
Bottom Layer |
30 ~ 40 sec @ 50 um |
20 ~ 30 sec @ 50 um |
8 ~ 10 sec @ 50 um |
Layers |
8 ~ 10 sec @ 50 um |
4 ~ 5 sec @ 50 um |
0.9 ~ 1.1 sec @ 50 um |
