Description

HD 4K resin is a high resolution UV curable resin for 3D printing. It is recommended to be used with 395 ~ 405 nm wavelength 3D printers. DLP, LCD, SLA printers are compatible. The resin enables high resolution printing with proper file formats. It can present a detailed and smooth surface finish and print small holes or fine surface texture. This resin has minimal shrinkage and can be cleaned easily with Magic Wash or IPA. High resolution miniatures are well suited for HD 4K resin.

 Key Characteristics:

  • Low viscosity with detailed print result.
  • Low exposure time and can work with a wide range of printing parameters to save time.
  • Created with nano-disperse technology to reduce particle settlement and color flooding.
  • Great adhesion to the print bed and easy to remove.
  • Create great results with high resolution files. Pictures can be presented exceptionally.

Post processing:

Printed parts will need to go through a proper curing process to achieve the desired resin characteristics. It is recommended to expose the part with 365 ~ 405 nm UV lights for 10 to 60 minutes depending on the size of the print.

General Applications:

  • Miniatures action figures or 3D models
  • Products that required high precision small holes

 Resin Properties:

  • Color: Grey, Red Wax
  • Density: 1.1 ~ 1.15 g/cm^3
  • Viscosity: Grey - 110 ~ 140 cps @ 25 C, Red Wax - 170 ~ 200 cps @ 25 C

Properties

Method

Parameter

Hardness Shore D

ASTM D2240

83

Tensile Strength (MPa)

ASTM 638

35.1

Young’s Modulus (MPa)

ASTM 638

1580

Elongation (%)

ASTM 638

13.8

Notched Impact Strength

ASTM D256 (J/m)

21.26

Glass Transition Temperature (C)

DSC

71

Heat Deflection Temperature (C)

ASTM D648 @ 0.46MPa

70

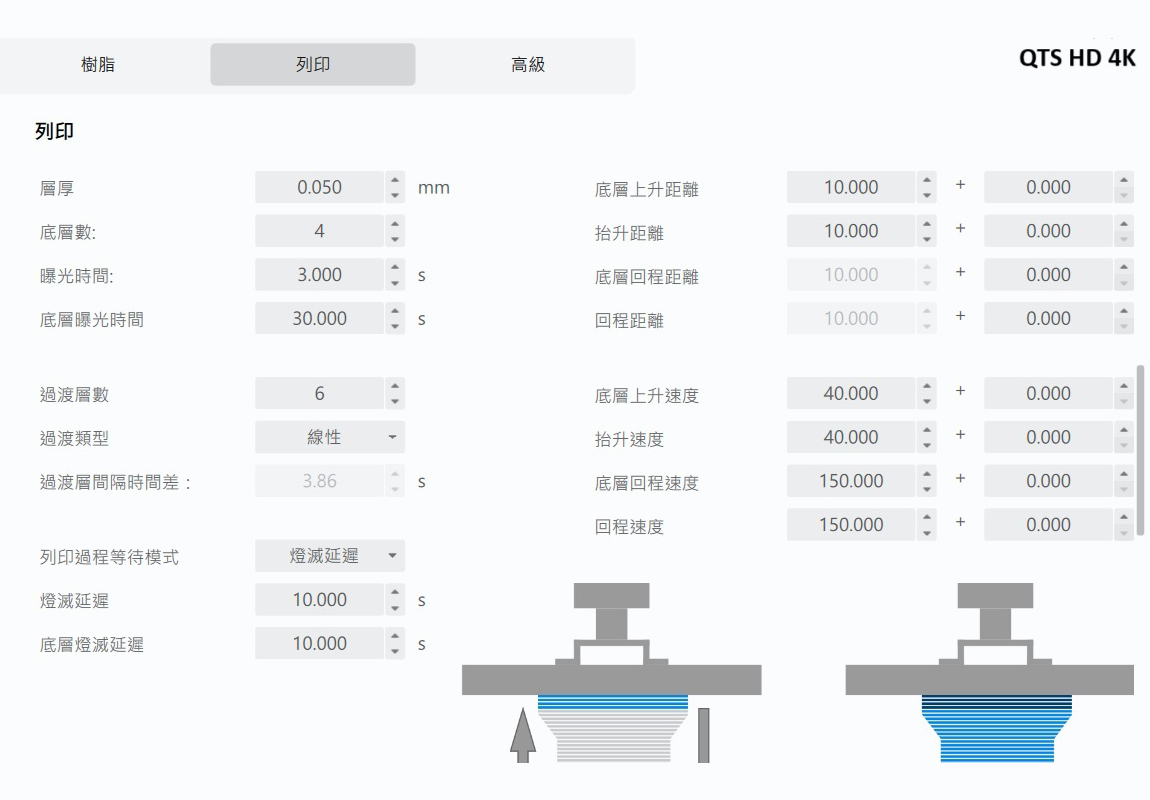

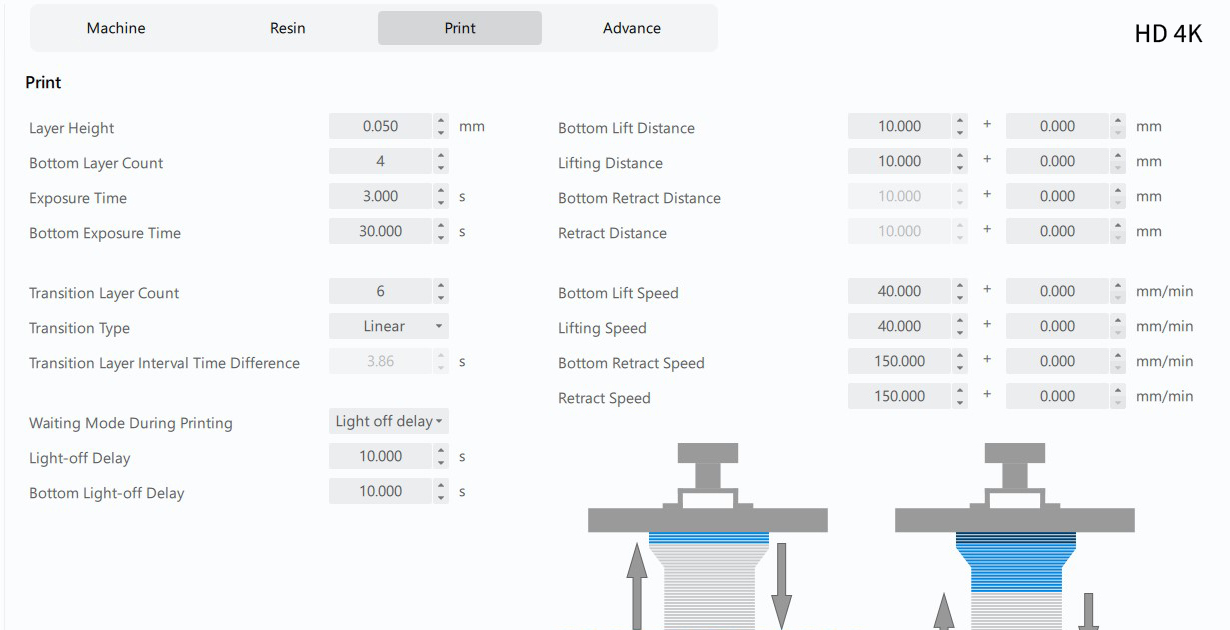

 Recommended Printing Parameters:


Phrozen Make Color-LCD

Phrozen Sonic mini Mono-LCD

Miicraft 125 DLP

Bottom Layer

15 ~ 25 sec @ 50 um

40 ~ 50 sec @ 50 um

5 ~ 8 sec @ 50 um

Layers

3 ~ 4.5 sec @ 50 um

4 ~ 6 sec @ 50 um

1.1 ~ 1.5 sec @ 50 um
