Key Features
✦ Low viscosity and excellent fluidity lead to precise printing and effortless cleaning.
✦ Fast curing speed: Wide range of printing parameters which reduce production time.
✦ Low odor.
✦ Printed parts are easy to clean.
Applications
✦ Prototyping application and miniatures
✦ Figurine
✦ Electronic hardware
✦ Product sampling
Features
✦ The resin has low viscosity and excellent flowability. It also has a fast photopolymerization reaction speed, which saves printing time and reduces costs.
✦ Residual resin is easy to clean off after printing. The surface presents a natural, fine matte finish after cleaning.
✦ The resin can be customized to achieve various degrees of hardness, flexibility, colors, and opacity.
✦ The wide range of printing and curing parameters ensures high print yields and ease of use.
✦ Low stimulation and odor do not affect the indoor working environments.
Usage Instructions
✦ Shake Well Before Use: Ensure the resin is thoroughly mixed by shaking well before use to prevent settling.
✦ Safety Precautions: This material is a photopolymer resin. Always wear rubber gloves during operating to avoid prolonged skin contact, which could cause allergic reactions or irritation.
✦ Cleaning After Printing: After printing, clean the printed models with alcohol, isopropyl alcohol, or a specialized cleaning agent.

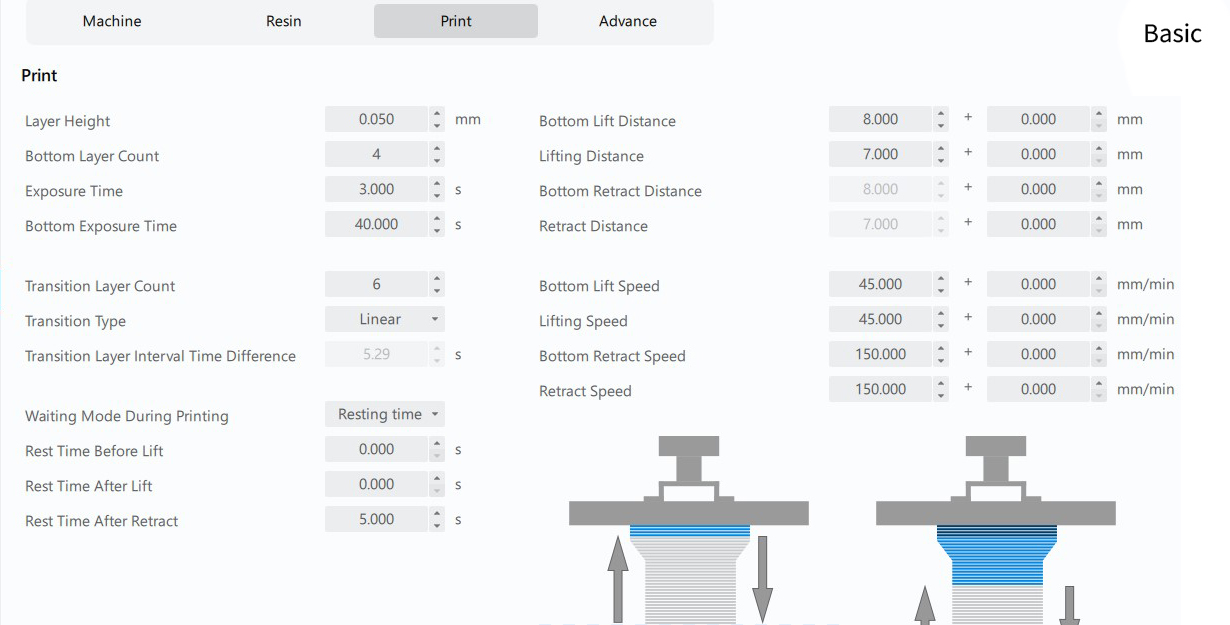

✦ Exposure Parameters Setting: Exposure settings can vary between printer brands and models. For optimal results, it is recommended printing a calibration test piece to confirm that the exposure parameters are suitable for your specific printer.
※ Due to differences between 3D printer brands, curing parameters for different resins may vary. The suggested values are for your reference. In order to achieve the best results, please make adjustments based on your specific needs and conditions.
Post-Curing Process
After forming, this material must undergo thorough post-curing process to achieve the best mechanical properties and durability.
✦ UV Post-Curing: Use a UV curing box with a wavelength of 365–405 nm for 10–60 minutes (the duration depends on the thickness of the model; thicker models require longer curing time). Sunlight is insufficient for post-curing.
✦ It is recommended using a special UV post-curing lamp for 3D printing in order to achieve the best results.
✦ If it can be combined with heat curing at 60℃ for 60 minutes, the toughness will be better.
Packaging Specifications
1 kg/bottle, black opaque plastic container
Color: Black, White, Gray
Storage and Transportation
✦ Shelf Life: 12 months
◆ This resin is photosensitive. Please avoid storing it in direct sunlight or in high-temperature environments.
Resin Operation Guidelines
✦ Gently shake the resin to ensure it is well-mixed before pouring it into the resin vat. Avoid direct exposure to light. It is best to store the resin at room temperature (15-35°C) in a dry environment.
✦ Please filter residual resin and seal it in a container after use. New and used resin should not be mixed; please store them separately and avoid exposure to air.
✦ Do not tip the resin arbitrarily. Please solidify the resin first, then handle it as 'general waste' to the sanitation team.'
Safety Guidelines
✦ Skin Irritation: Resin may cause mild skin irritation. If you experience any allergic reactions, please stop using the material immediately.
✦ Protective Gear: Always wear gloves, safety goggles, and protective clothing when handling resin. Wash your hands with a cleanser after every operation.
✦ Avoid Contacting with eyes and Forbid Ingestion: Pleas avoid contacting with eyes and it is forbidden to ingest the resin. If the resin gets into your eyes, rinse them thoroughly with plenty of water and seek medical attention immediately.
✦ Ventilation: The resin has a slight odor. It is recommended using it in a well-ventilated area.
