📦 Product Introduction
QTS Basic Clear UV Resin achieves glass-like transparency! Developed and manufactured in Taiwan, it offers excellent transparency and anti-yellowing properties. With a low-odor formula and high success rate, it's the perfect choice for creating transparent prototypes, light guides, or artistic pieces.
This resin has been improved to be even more resistant to yellowing than the basic clear resin, maintaining crystal-clear transparency for extended periods, making it ideal for high-precision optical component manufacturing. After polishing and painting, the effect approaches glass, with smoother surfaces and significantly reduced layer lines, presenting a more perfect texture. Additionally, it has better toughness - even thin pieces can bend without breaking easily, making your creations more flexible.
Using 405nm UV light source, it's perfectly compatible with all LCD, DLP, SLA 3D printers. The formula has been optimized to deliver ultra-high success rate, clear details, low odor, and safe non-toxic characteristics, making it ideal for beginner entry, mass prototyping, or professional creation.
⭐ Core Advantages
🔍 Excellent High Transparency
Our formula is optimized to achieve excellent light transmission. After correct post-processing (such as polishing and varnishing), the finished product can present near-glass-like transparency.
☀️ Excellent Anti-Yellowing Performance
Using high-quality photoinitiators and materials, it effectively resists yellowing caused by prolonged light exposure or post-curing, keeping your work crystal clear for years.
💧 Low Viscosity, Easy to Clean
The resin's lower viscosity helps present model details and is easier to clean after printing, preventing residue in crevices and ensuring product cleanliness.
✅ High Success Rate & Stability
Inheriting QTS resin's consistent stability, beginner-friendly with excellent printing tolerance, easily achieving high-quality successful prints.
🇹🇼 Taiwan R&D and Manufacturing
Fully completed in Taiwan, strict quality control ensures every bottle of resin maintains consistent transparency and performance.
🌬️ Low Odor Formula
Using high-quality raw materials, significantly reducing unpleasant chemical odors, making your creative process more comfortable and secure.
🎯 Application Scenarios
QTS Basic Clear Resin is suitable for multiple creative applications:
-
Transparent Prototypes & Shells: For product prototypes showing internal structure, electronic product shells, display boxes.
-
Optical & Light Guide Applications: Creating simple light guide columns, lens models, lamp shades, optical components.
-
Artistic & Special Effects Creation: Simulating transparent textures like ice, crystals, water flows, artistic sculptures.
-
Medical & Dental Models: Creating teaching models requiring observation of internal structures, medical models.
-
Jewelry & Accessories: Creating transparent jewelry, crystal accessories, transparent components.
-
Education & Display: Creating transparent scientific models, structure display pieces, educational tools.
✅ Machine Compatibility
QTS Basic Clear Resin is compatible with all 405nm UV light source LCD, DLP, SLA 3D printers, including but not limited to:
- ✅ Phrozen
- ✅ Anycubic
- ✅ Elegoo
- ✅ Creality
- ✅ FlashForge
- ✅ eSUN
- ✅ Miicraft
- ✅ Other 405nm Models
💡 Tip: Due to the many compatible machine types, if you're unsure whether your 3D printer is compatible, please contact our QTS team for confirmation!

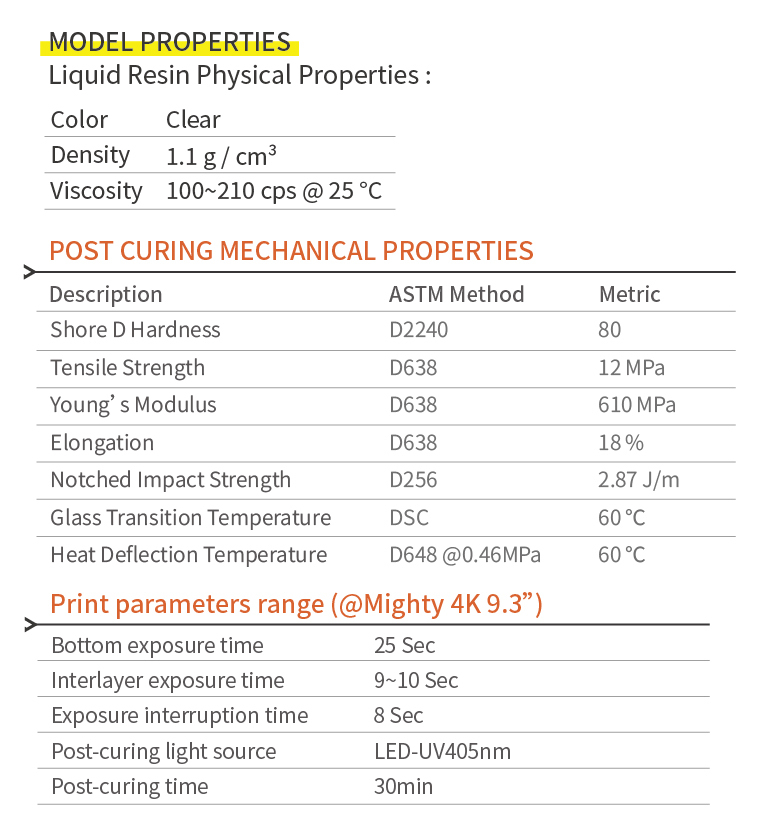

📋 Basic Physical Properties
| Property Item | Specification |
| Appearance | Flowing Liquid |
| Density | 1.1 g/cm³ |
| Viscosity | 100~210 cps @ 25°C |
| Light Source Wavelength | 405 nm UV |
| Package Size | 1kg Black Opaque Plastic Container |
| Color Option | Clear (Blue→Transparent) |
| Shelf Life | 12 Months |
🔧 Post-Curing Mechanical Properties
The following data was obtained by testing specimens printed with Phrozen Sonic Mini 4K printer:
| Test Item | Test Method | Property Value |
| Shore D Hardness | ASTM D2240 | 80 |
| Tensile Strength | ASTM D638 | 12 MPa |
| Tensile Modulus | ASTM D638 | 610 MPa |
| Elongation at Break | ASTM D638 | 18% |
| Notched Impact Strength | ASTM D256 | 2.87 J/m |
| Glass Transition Temperature (Tg) | DSC | 60°C |
| Heat Deflection Temperature (HDT) | ASTM D648 @0.46MPa | 60°C |

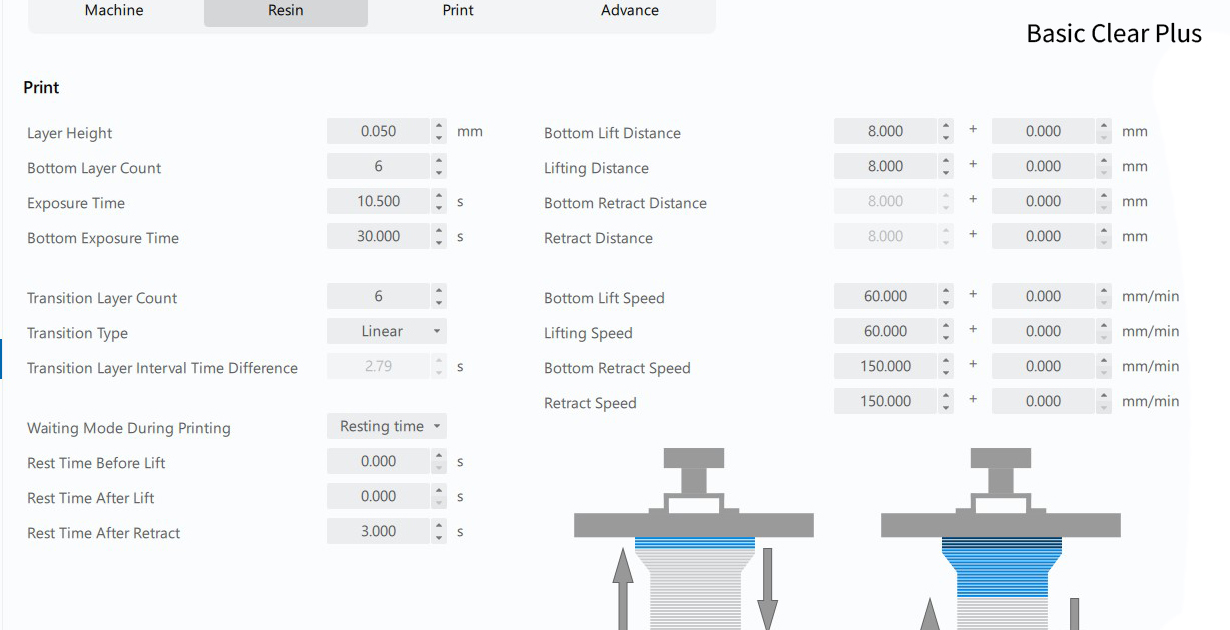

⚙️ Recommended Printing Parameters (@50μm Layer Height)
The following parameters apply to different brand 3D printers. For first-time use, it's recommended to print calibration samples to confirm if exposure parameters are appropriate:
| Parameter Item | Recommended Setting |
| Bottom Layer Exposure Time | 25 sec |
| Layer Exposure Time | 9-10 sec |
| Light Off Delay | 8 sec |
| Post-Curing Light Source | LED-UV405nm |
| Post-Curing Time | 30 min |
💡 Professional Recommendations
Special Reminder: Basic Clear Plus is a newly improved resin. When first printed, the color is transparent blue, which gradually becomes completely transparent over time. This is normal.
First Use: It's recommended to print calibration samples to confirm if exposure parameters are appropriate.
Machine Differences: Exposure parameters will vary between different brands and models. Please adjust according to actual conditions.
Mix Thoroughly: Before use, shake thoroughly to mix well and avoid prolonged settling.
📖 Usage Guide
Cleaning and Post-Curing
After printing, the material can be cleaned with alcohol, isopropyl alcohol, or dedicated cleaning solution. After cleaning, it must undergo sufficient post-curing to achieve optimal mechanical properties and dry, wear-resistant surface characteristics.
Post-Curing Methods
UV Post-Curing: Perform UV post-curing in a 365~405nm light box for 10~60 minutes (varies depending on material thickness - thicker materials require longer curing time). Using only sunlight for post-curing is insufficient.
Recommended Combination: Use a dedicated 3D printing UV post-curing light for optimal results.
Heat Curing Enhancement: If combined with heat curing at 60°C for 60 minutes, toughness will be improved.
Operation Precautions
Before use, shake thoroughly to mix well and avoid prolonged settling. This material is a photocurable chemical. Wear rubber gloves during operation and avoid prolonged skin contact to prevent allergic itching.
Exposure parameters will vary between different brands and models. For first-time use, print calibration samples to confirm appropriate parameters.
After printing, the material can be cleaned with alcohol, isopropyl alcohol, or dedicated cleaning solution. Avoid using strong alkaline cleaners.
Avoid direct light source contact. Store at room temperature (15-35°C) in a dry environment.
This material has slight odor. Strongly recommend using in a well-ventilated area.
Storage and Preservation
Shelf Life: 12 months
Storage Conditions: Avoid storing in direct sunlight, high temperature and humidity locations
Light Sensitivity: This product is a light-sensitive material and requires proper storage
⚠️ Important Reminder
This resin has slight skin irritation. If allergic reactions occur, stop using immediately. Avoid eye contact and ingestion. If eye contact occurs, rinse with large amounts of water and seek medical attention promptly.
🏆 Why Choose QTS?
30+
Years Chemical Industry Background
15+
Years 3D Printing Experience
8000+
Taiwan Customers Trust
100%
Taiwan R&D and Manufacturing
🇹🇼 100% Taiwan R&D and Manufacturing
From formula design, raw material selection to production manufacturing, everything is completed in Taiwan. We can respond to market demands fastest and ensure every batch of resin meets our strict quality standards, eliminating color differences and performance instability issues.
🤝 Over Fifteen Years of Industry Trust
We have been deeply rooted in Taiwan's 3D printing field for over fifteen years, serving over 8,000 customers across Taiwan, from individual creators to large enterprises - we understand your needs.
🔧 Excellent Versatility and Compatibility
Our resins have undergone extensive testing across multiple brands and models, perfectly compatible with all 405nm UV light source LCD/DLP/SLA 3D printers on the market. ✅ Phrozen ✅ Anycubic ✅ Elegoo ✅ Creality ...and more!
🧪 Expert-Level Technical Support
Encountering problems? Our team is your knowledge base. We provide not just products, but solutions. From parameter settings, slicing techniques to post-processing recommendations, we're happy to share practical experience to help you overcome challenges.
🍃 Focus on User Experience
We understand that odor and operational safety are pain points for resin users. Therefore, we're committed to developing "low-odor, low-irritant" formulas and ensuring products are easy to clean, making your creative process more comfortable and secure.
🧾 Transparent Shopping Experience
All website prices include tax, and every shipment comes with a unified invoice. Whether for individual or corporate purchases, everything is clear and guaranteed.
Choose QTS, Choose Stable, Precise, Secure Printing Partner
❓ Frequently Asked Questions
Q: Which 3D printers is QTS Basic Clear Resin compatible with?
A: QTS Basic Clear Resin is compatible with all 405nm UV light source LCD, DLP, SLA 3D printers, including mainstream brands like Phrozen, Anycubic, Elegoo, and Creality. Due to the many compatible machine types, if you're unsure whether your 3D printer is compatible, please contact our QTS team for confirmation.
Q: Why is the newly printed resin transparent blue?
A: Basic Clear Plus is a newly improved resin. When first printed, the color is transparent blue, which gradually becomes completely transparent over time. This is normal and is due to the characteristics of the photoinitiator. It does not affect the final transparency and performance.
Q: How should I set printing parameters?
A: We provide recommended parameters for Phrozen Sonic Mini Mono-LCD, Phrozen XL Color-LCD, and Miicraft 125 DLP. For first-time use, print calibration samples to confirm appropriate exposure parameters. Parameters will vary between different brands and models - adjust according to actual conditions.
Q: How should post-curing be performed?
A: After printing, the material must undergo sufficient post-curing to achieve optimal mechanical properties. We recommend UV post-curing in a 365~405nm light box for 10~60 minutes (varies by material thickness). If combined with heat curing at 60°C for 60 minutes, toughness will be improved.
Q: Does the resin have odor?
A: We use high-quality raw materials that significantly reduce unpleasant chemical odors and ensure formula safety. Compared to other resins, Basic Clear has noticeably lower odor, making it more suitable for indoor use.
Q: How should the resin be cleaned?
A: After printing, the material can be cleaned with alcohol, isopropyl alcohol, or dedicated cleaning solution. We recommend using QTS Magic Wash Cleaner for best results.
Q: What are the mechanical properties of the resin?
A: Basic Clear's mechanical property indicators include: Shore D Hardness 80, Tensile Strength 12 MPa, Tensile Modulus 610 MPa, Elongation 18%, Notched Impact Strength 2.87 J/m, Glass Transition Temperature 60°C, Heat Deflection Temperature 60°C. These indicators demonstrate the resin has good strength and toughness.
Q: What is the shelf life of the resin?
A: QTS Basic Clear Resin has a shelf life of 12 months. This product is a light-sensitive material and should be stored away from direct sunlight and high temperature locations.
Start Your High-Precision Transparent Printing Journey
Choose QTS Basic Clear Resin and enjoy high success rate, low odor, stable and reliable printing experience!
Any questions? Feel free to contact our technical support team!
