🦷 QTS Dental Model Resin
Made in Taiwan | Ultra-Low Shrinkage | High Precision | Digital Dentistry
✅ Made in Taiwan ✅ Ultra-Low Shrinkage ✅ High Precision ✅ Dental-Specific ✅ 405nm Universal
QTS Dental Model Resin is a precision material specifically designed to meet the stringent standards of modern digital dentistry. We understand that in dental applications, "precision" is everything. Therefore, this resin developed by our Taiwan team is committed to providing unparalleled dimensional stability and detail reproduction, aimed at optimizing your workflow and saving valuable technician time.
⭐ Core Advantages
🎯 Ultra-Low Shrinkage, Perfect Fit
Extremely low volumetric shrinkage ensures removable denture models and clear aligner trays maintain precise dimensions after separation, with excellent assembly fit and minimal need for manual adjustment.
✅ High Success Rate, Reliable Stability
Optimized for both top-pull (DLP/SLA) and bottom-pull (LCD) printer mechanics, ensuring models adhere firmly to the build platform, significantly reducing print failures from model detachment.
🔍 Low-Viscosity Formula, Fine Details
Excellent flow characteristics and low viscosity clearly reproduce tooth margins, textures, and undercuts, while making the cleaning process simpler and more thorough.
💪 Tough & Durable, Easy to Operate
Finished products combine high hardness with excellent mechanical toughness, resistant to breakage during removal, cleaning, or technician handling, withstanding repeated placement and comparison.
⚡ Efficient Printing, Increased Productivity
Fast curing characteristics support a wider range of printing parameters, effectively reducing print time and helping dental labs increase daily productivity.
🇹🇼 Taiwan R&D & Manufacturing, Quality Assured
100% Taiwan-designed and manufactured. From formula development, raw material selection to production, everything is completed in Taiwan, ensuring consistent quality standards.
🎯 Application Scenarios
QTS Dental Model Resin is suitable for various dental applications:
-
Removable Denture Models (Removable Die Models): Ensures precise fabrication of dental crowns and bridges with perfect fit.
-
Clear Aligner Tray Models: Provides the smooth surface and precise dimensions required for thermoforming, ensuring perfect aligner fit.
-
Orthodontic Research & Diagnostic Models: Used for patient communication, surgical planning, and academic research.
-
Surgical Guides (Implant Guides): Creates high-precision implant guide models for surgical accuracy.
-
Dental Diagnostic & Teaching Models: Used for dental education, patient communication, and clinical diagnosis.
-
Crown & Bridge Fabrication Base: Provides precise base models ensuring perfect adaptation of final restorations.
🔧 Compatible Printers
QTS Dental Model Resin perfectly works with all 405nm light source LCD/DLP/SLA 3D printers on the market:
✅ Phrozen
✅ Anycubic
✅ Elegoo Mars
✅ Creality
✅ FlashForge
✅ eSUN
✅ Miicraft
✅ Other 405nm Printers
📊 Physical Properties
| Property | Specification |
| Appearance | White Flowing Liquid |
| Density | 1.12 ~ 1.16 g/cm³ |
| Viscosity | 150 ~ 250 cps @ 25°C |
| Light Source Wavelength | 405nm UV |
| Package Size | 500ml, 1000ml |
| Shelf Life | 12 Months |
🔬 Post-Curing Mechanical Properties
| Test Item | Test Method | Property Value |
| Shore D Hardness | ASTM D2240 | 84 ~ 85 |
| Tensile Strength | ASTM D638 | 29.75 MPa |
| Tensile Modulus | ASTM D638 | 1480 MPa |
| Elongation at Break | ASTM D638 | 41.73% |
| Notched Impact Strength | ASTM D256 | 36 J/m |
| Glass Transition Temperature (Tg) | DSC | 60°C |
| Heat Deflection Temperature (HDT) | ASTM D648 @0.46MPa | 65°C |

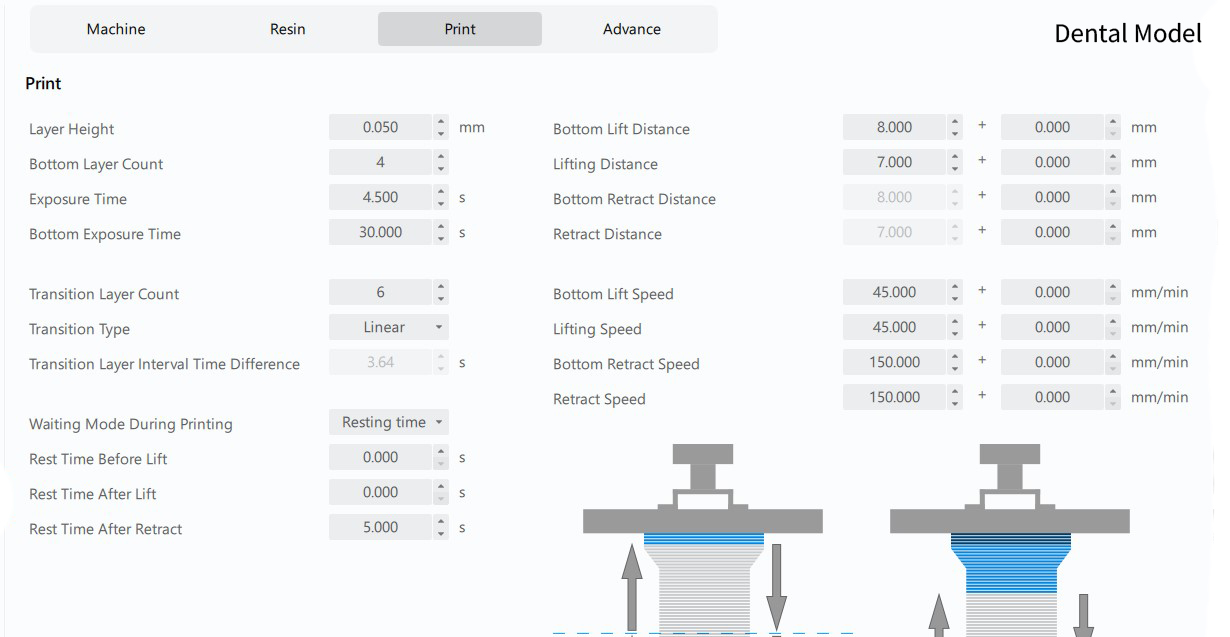

⚙️ Recommended Printing Parameters
Different printer brands and models have different exposure parameters. For first-time use, we recommend printing calibration pieces to confirm appropriate exposure parameters. Below are the recommended parameters for each printer model:
Machine-Specific Parameters (@50μm Layer Height)
| Printer Model | Bottom Layer Exposure Time | General Layer Exposure Time |
| Phrozen Make Color-LCD | 30 ~ 40 sec @ 50μm | 8 ~ 10 sec @ 50μm |
| Phrozen Sonic mini Mono-LCD | 20 ~ 30 sec @ 50μm | 4 ~ 5 sec @ 50μm |
| Miicraft 125 DLP | 8 ~ 10 sec @ 50μm | 0.9 ~ 1.1 sec @ 50μm |
Parameter Adjustment Recommendations
-
First-Time Use: We recommend using the middle values in the table for testing, for example, Phrozen Make Color-LCD using bottom layer 35 seconds and general layer 9 seconds.
-
Precision Priority: If higher precision is needed, choose longer exposure times (upper limits in the table).
-
Speed Priority: If faster printing speed is needed, choose shorter exposure times (lower limits in the table), but ensure models adhere firmly to the platform.
-
Layer Height Adjustment: The parameters in the table are based on 50μm layer height. If using different layer heights, exposure times need to be adjusted accordingly.
-
Gradual Optimization: Adjust parameters based on actual printing results. If prints are too brittle, increase exposure time; if too soft, decrease exposure time.
General Parameter Recommendations
| Parameter Item | Recommended Range | Description |
| Layer Height | 25 ~ 50 μm | 50μm recommended for best results |
| Lift Speed | 50 ~ 100 mm/min | Adjust based on printer model |
| Support Density | Medium Density | Ensures model stability |
| Light Wavelength | 405nm | This resin is designed specifically for 405nm light source |
💡 Tip: For first-time use, print calibration pieces to confirm appropriate exposure parameters. If prints are too brittle, try increasing exposure time; if too soft, try decreasing exposure time.
📖 Usage Guide
Preparation Before Use
- Shake and mix thoroughly before use to avoid settling.
- This material is a photocurable chemical. Wear rubber gloves during operation to avoid prolonged skin contact, which may cause allergic itching.
- Operate in a well-ventilated environment to avoid inhaling vapors for extended periods.
Printing and Cleaning
- Exposure parameters vary among different printer brands and models. For first-time use, we recommend printing calibration pieces to confirm appropriate exposure parameters.
- After printing, the material is suitable for cleaning with alcohol, isopropyl alcohol, or specialized cleaning agents.
- We recommend using QTS Magic Wash cleaning solution for best results, making the cleaning process simpler and more thorough.
Post-Curing Treatment
- After printing, the material must undergo sufficient post-curing to achieve optimal mechanical properties and surface durability.
- Perform UV post-curing in a 365~405nm light box for 10~60 minutes (varies with material thickness; thicker materials require longer curing time).
- Sunlight exposure alone is insufficient for post-curing.
- We recommend using QTS UV Polish Master for post-treatment to achieve the best surface finish.
Storage and Preservation
- Product shelf life: 12 months.
- This product is light-sensitive material. Avoid storage in direct sunlight or high-temperature locations.
- Recommended storage in cool, dry conditions at 15~25°C for optimal preservation.
🏆 Why Choose QTS Dental Model Resin?
30+
Years of Chemical Background
15+
Years of 3D Printing Experience
8000+
Taiwan Customers Trust
Taiwan
Local Manufacturing
Stable Batch Quality Control
Strict control of resin quality and batch stability to reduce machine adjustment time. Every batch of resin undergoes complete testing to ensure consistency of critical parameters such as density, viscosity, and curing speed.
Professional Technical Support
Provides printing parameter recommendations and troubleshooting, suitable for long-term use by dental laboratories, clinics, and research institutions. Our technical team is ready to help you solve printing problems.
Close to Taiwan Market Demands
Formula characteristics and packaging design take into account actual usage scenarios and environments. We continuously improve products based on feedback from Taiwan's dental customers.
Multi-Machine Compatibility
Compatible with most 405nm light source LCD/DLP/SLA 3D printers on the market, including Phrozen, Anycubic, Elegoo, Creality, and other mainstream brands.
Why Choose QTS (Precision Testing Technology)?
30+ Years of Chemical Background | 15+ Years of 3D Printing Experience | Over 8000 Taiwan Customers | 100% Taiwan Manufacturing
QTS is not only an expert in Taiwan's 3D printing field, but also possesses over 30 years of chemical industry background and 15+ years of deep experience in 3D printing. We combine profound material science knowledge with local R&D expertise to provide the most suitable solutions for Taiwan's dental market.
- 🧪 Independent R&D and Innovation: With a professional team focused on material science, we develop ultra-low shrinkage, high precision, high success rate resin formulas for dental applications.
- 📌 Strict Quality Control: Ensures every batch of resin has stable density, consistent curing speed, and precise dimensions - not just easy to print, but precise.
- 🔧 Professional Technical Support: Provides the most comprehensive parameter recommendations and troubleshooting to help dental labs and clinics maximize machine performance.
- 🌟 Dental Application Expertise: Deep understanding of dental model, invisible braces, surgical guide applications and requirements, targeted product development.
- 🇹🇼 Taiwan Manufacturing Quality: Local manufacturing supporting Taiwan industry with guaranteed quality.
- 🧾 Transparent and Worry-Free Shopping: All product prices are tax-inclusive, and unified invoices are attached to every shipment for convenient accounting and reimbursement.
❓ Frequently Asked Questions
Q: What dental applications is this resin suitable for?
A: QTS Dental Model Resin is suitable for removable denture models, clear aligner tray models, orthodontic diagnostic models, surgical guides, dental diagnostic and teaching models, and more. Its ultra-low shrinkage and high precision ensure perfect fit of final products.
Q: What is the shrinkage rate of this resin?
A: QTS Dental Model Resin uses an ultra-low shrinkage formula with volumetric shrinkage significantly below industry average. This ensures precise dimensions after separation and excellent assembly fit, reducing the need for manual adjustment. Contact our technical team for specific values.
Q: How do I set printing parameters?
A: Exposure parameters vary among different printer brands and models. For first-time use, we recommend printing calibration pieces to confirm appropriate exposure parameters. Generally, we suggest bottom layer exposure time of 15~25 seconds and layer exposure time of 6~12 seconds at 50μm layer height. For specific recommendations, please contact our technical team.
Q: How do I perform post-curing?
A: After printing, the material must undergo sufficient post-curing to achieve optimal mechanical properties. We recommend UV post-curing in a 365~405nm light box for 10~60 minutes (varies with material thickness). Sunlight exposure alone is insufficient. We recommend using QTS UV Polish Master for post-treatment.
Q: Does the resin have odor?
A: We use high-quality raw materials that significantly reduce unpleasant chemical odors. Compared to other resins, QTS Dental Model Resin has noticeably lower odor, more suitable for indoor use. Operating in a well-ventilated environment further reduces odor.
Q: What cleaning agent should I use?
A: After printing, the model is suitable for cleaning with alcohol, isopropyl alcohol, or specialized cleaning agents. We particularly recommend using QTS Magic Wash cleaning solution for best results, making the cleaning process simpler and more thorough.
Q: What is the shelf life of the product?
A: QTS Dental Model Resin has a shelf life of 12 months. We recommend storing in cool, dry conditions at 15~25°C, avoiding direct sunlight. Sealed storage can extend the service life.
Q: Which 3D printers is this resin compatible with?
A: QTS Dental Model Resin is perfectly compatible with all 405nm light source LCD/DLP/SLA 3D printers, including Phrozen, Anycubic, Elegoo, Creality, FlashForge, eSUN, Miicraft, and other mainstream brands.
📞 Contact Us
Do you have any questions or need technical support? Feel free to contact us anytime!
Email: info@qts.tw
Official Website: shop.qts.tw
