QTSENGR Strong Resin: Your All-Round Tough Printing Partner
Whenyour creations need to withstand real-world tests, QTS ENGR Strong HighHardness Resin is your most reliable choice. This is a versatile engineeringresin designed for strength, toughness, and precision, with performancecomparable to traditional ABS injection-molded parts. Whether it's functionalprototypes, snap-fit parts requiring repeated use, or action figures you wantto be more durable, ENGR Strong delivers durability beyond expectations.
Whyis ENGR Strong Your Best Upgrade?
-
ABS-Like Toughness & Performance: It boasts a high hardness of Shore 85D, combined with an impressive impact strength of 36 J/m and an elongation at break of 23%. This means the finished parts are not only hard but also tough, making them impact-resistant and not prone to brittle failure.
-
High Precision, Low Shrinkage: Engineering applications start with precision. ENGR Strong features low shrinkage properties, ensuring printed parts are dimensionally stable with minimal deformation, allowing your multi-part assemblies or snap-fit designs to fit together perfectly.
-
Performance Rivaling Injection-Molded Parts: After thorough post-curing, its mechanical properties are excellent, with a dry, wear-resistant surface. The quality and strength are comparable to industrial-grade plastic injection-molded parts, making it an ideal material for high-quality prototypes.
-
Efficient & Stable Printing Experience: Its low viscosity and good fluidity not only render design details clearly but also simplify the cleaning process. The optimized formula ensures a high success rate across various machine types, saving you time and material.
WideRange of Applications:
-
Functional Prototypes & Product Design: For validating the function of power tool housings or mechanical parts.
-
Lifestyle & Utility Parts: Custom durable accessories like household parts, snap-fit closures, and jigs.
-
Outdoor & Sports Accessories: Bicycle components, action camera mounts, drone parts, etc.
-
High-Strength Figures & Toys: Creating models or toys that can withstand handling and play without breaking easily.

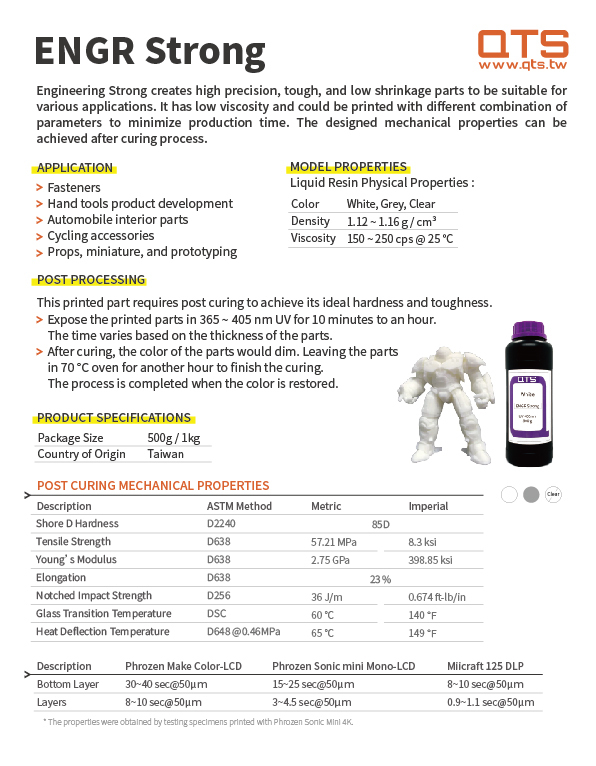

ENGRStrong Resin Specifications
-
Technology: LCD / DLP / SLA 3D Printing
-
Wavelength: 395~405nm
-
Shore Hardness: 85 D
-
Tensile Strength: 57.21 MPa
-
Elongation at Break: 23%
-
Notched Izod Impact: 36 J/m
-
Heat Deflection Temperature (HDT @0.45MPa): 65℃
-
Color: White / Grey
-
Package: 1Kg
UsageInstructions & Safety Recommendations
Operation& Post-Curing:
-
Shake Well: Before use, gently shake the bottle to ensure the resin is thoroughly mixed.
-
Cleaning: After printing, clean the model with 95% Isopropyl Alcohol (IPA) or a dedicated resin cleaning solution.
-
Post-Curing (Essential): To achieve optimal mechanical properties, UV post-curing is mandatory. Place the cleaned model in a 365-405nm UV curing chamber for 10-60 minutes (time varies with model thickness and color).
1. Notefor White Resin: Itis normal for the white print to darken after post-curing. It will return to abright white after 2-3 days at room temperature or by heating at 70°C for 1hour, which indicates full curing and optimal mechanical properties.
Storage& Disposal:
-
Storage: Seal and store in a cool, dry place at 15-35°C, away from direct sunlight. Filter and store used resin separately.
-
Disposal: Do not pour liquid resin down the drain. Please fully cure waste resin into a solid state and dispose of it as "General Recyclable Waste."
SafetyPrecautions:
-
Personal Protection: Always wear gloves, safety goggles, and protective clothing when handling resin. Wash hands with soap after each operation.
-
Ventilation: It is strongly recommended to use the resin in a well-ventilated area.
-
Keep Away from Children: Store resin properly and keep it out of reach of children.
Why QTS? Choose QTS for a ProfessionalCommitment from Taiwan
At QTS, we don't just sell products; we arededicated to delivering a perfect printing experience from the moment you openthe bottle to the finished model. With our independent R&D capabilities anddeep industry knowledge based in Taiwan, we provide the strongest support foryour detailed creations.
🇹🇼 100% Engineered & Made in Taiwan
From formula design and raw materialsourcing to final production, the entire process is completed in Taiwan. Thisallows us to respond quickly to market needs and ensure every batch meets ourstrict quality standards, eliminating issues like color deviation andinconsistent performance.
🤝 Over15 Years of Industry Trust
With over fifteen years in Taiwan's 3Dprinting scene, we've served over 8,000 clients, from individual creators tolarge corporations. We understand your needs.
🔧Universal Compatibility
Our resins undergo extensive testing acrossmultiple brands and machine types. They are fully compatible with all 405nmLCD, DLP, and SLA 3D printers on the market. ✅ Phrozen ✅ Anycubic ✅ Elegoo ✅ Creality ...and more!
🧪 ExpertTechnical Support
Encounter a problem? Our team is yourknowledge base. We offer more than just products; we provide solutions. Fromparameter settings and slicing techniques to post-processing advice, we areeager to share our hands-on experience to help you overcome any challenge.
🍃 Focuson User Experience
We understand that odor and operationalsafety are major concerns for resin users. That's why we are committed todeveloping "low-odor, low-irritation" formulas and ensuring ourproducts are easy to clean, making your creative process more comfortable andsafer.
🧾Transparent Purchasing Experience
All prices on our website include tax, andan official invoice is provided with every shipment, ensuring clarity andsecurity for both personal and corporate purchases.
Choosing QTS means choosing a stable,precise, and reliable printing partner.
