QTS Flex 25A Silicone-Like Elastic Resin | Shore 25A | 340% Elongation | Buttons/Cushion/Wristband | Made in Taiwan

QTS Flex 25A Silicone-Like Elastic Resin — Made in Taiwan, Shore 25A hardness, 270~340% elongation. Excellent rebound support. Perfect for functional buttons, cushion pads, seals, wristband prototypes & RC car tires. Compatible with all 405nm printers.

全館消費金額滿$8,000，即享免運🚚 on selected categories

QTS Resins Promotion on selected categories

NT$990

NT$840

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )

Quantity Product set quantity

Buy Together and Save More (At most {{ addItemQuantity }} item(s))

魔速洗清洗劑/3D列印清洗劑/樹脂清洗劑 - 1KG(適用SLA/DLP/LCD光固化3D列印成品)

Sale NT$250

QTS UV Polish Master (Glossy/Matte) 200g

Sale NT$299

QTS ColorMix 30ML x Eight colors - Made in Taiwan | Color Mixing Kit

Sale NT$650

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Description

Shipping & Payment

Customer Reviews

Description

🏆 QTS Technology — Taiwan's Leading Materials Science Brand

30+ Years Chemical Background

15+ Years 3D Printing Experience

8000+ Taiwan Customers

100% Made in Taiwan

QTS Technology has over 30 years of chemical R&D background, with 15+ years dedicated to 3D printing materials. Our R&D team continuously pushes the boundaries of materials science, providing 8000+ Taiwan customers with the highest quality 3D printing solutions. Every QTS resin is developed, manufactured, and quality-controlled locally in Taiwan.

🟡 QTS Flex 25A Silicone-Like Elastic Resin

Name: QTS Flex 25A Silicone-Like Elastic Resin | Shore 25A | 340% Elongation | Buttons/Cushion/Wristband | Made in Taiwan
SKU: 661e3dc13e55a1001a2544e2
Price: 840.0 TWD
Availability: InStock

Soft Touch × Excellent Rebound × Tear-Resistant Durability — The Best Choice for Functional Elastic Parts

Shore 25A 270~340% Elongation Silicone-Like Feel High Rebound 405nm Compatible Made in Taiwan

25A Shore Hardness
Soft Rubber Feel

340% Max Elongation
Tear-Resistant

405nm Compatible Wavelength
All Printer Types

🔍 Flex Series Hardness Selection Guide

QTS Flex series offers multiple hardness options to meet different application needs:

🟢 Flex 8A

Shore 8A

Ultra-Soft Feel
700% Elongation
Gel-like texture
Wearables, Medical Models

🟡 Flex 25A (This Product)

Shore 25A

Soft Rubber Feel
270~340% Elongation
Excellent rebound support
Buttons, Cushions, Wristbands

🔵 Standard Elastic Resin

Shore 50A+

Firmer Elasticity
100~200% Elongation
Structural elastic parts
Industrial fixtures, Covers

💡 Flex 25A is Perfect for You If You Need:

✅ Functional buttons that can be repeatedly pressed and quickly rebound
✅ Cushion pads or shock absorbers for protective applications
✅ Wristband or sports gear prototypes that need support but remain soft
✅ Seals or anti-slip pads with soft rubber texture
✅ RC model tires or elastic transmission parts

✨ Six Core Advantages

🔄

Excellent Rebound Performance

Shore 25A hardness provides soft rubber-like texture. Withstands repeated compression and bending, quickly returning to original shape — ideal for functional elastic parts.

💪

Superior Tear Resistance

Up to 270~340% elongation ensures product durability. Even under tensile or torsional stress, it resists tearing, handling dynamic application challenges.

🤲

Silicone-Like Soft Touch

Skin-friendly surface with gentle touch, suitable for wearable devices, operating interfaces, or medical models requiring body contact.

🎨

Design Freedom Unleashed

Directly print complex soft structures impossible with traditional molds — integrated elastic buttons, cushioned insoles — dramatically accelerating R&D.

⚡

High Print Success Rate

Formula optimized for LCD/DLP/SLA printers. Low viscosity ensures good resin flow, significantly reducing print failure rates and saving material costs.

🏭

Made in Taiwan

100% Taiwan R&D and manufacturing with strict quality control and high batch consistency. QTS Technology's 30+ years of chemical background ensures trustworthy quality.

🎯 Six Key Application Areas

🔘

Functional Prototypes

Product buttons, anti-slip pads, seals, soft grips. Perfectly simulates the feel and function of final products.

🛡️

Cushioning & Shock Absorption

Custom cushion pads, shock absorbers, robot buffer blocks. Protects precision equipment from impact damage.

⌚

Wearable Devices

Wristband prototypes, sports gear, earphone ear pads requiring support. Skin-friendly material for comfortable long-term wear.

🚗

Models & Props

RC model tires, elastic parts in film props. High elongation ensures repeated use without damage.

🔬

Medical & Research

Medical device soft part prototypes, human tissue simulation models, laboratory soft clamping devices.

🏭

Industrial Applications

Pipeline seals, anti-vibration rubber pads, soft transmission parts, industrial robot end-effector soft contact surfaces.

📊 Complete Technical Specifications

🧪 Photosensitive Resin Basic Properties (Liquid Material)

Test Item	Value	Notes
Appearance	Flowing Liquid	Yellow Transparent
Color	Yellow	—
Volume	500g	—
Compatible Wavelength	395 ~ 405 nm	LCD / DLP / SLA

⚙️ Mechanical Properties After Curing

Test Item	Test Method	Value
Shore Hardness A	ASTM D2240	25 A
Elongation at Break %	ASTM D638	270 ~ 340 %
Tensile Strength MPa	ASTM D638	2 ~ 3 MPa
Technology Type	—	LCD / DLP / SLA

⚙️ Recommended Exposure Parameters

⚠️ Elastic Resin Printing Notes

Elastic resin printing parameters differ from standard hard resins. Use longer bottom layer exposure times to ensure adhesion, while avoiding over-exposure which can make the final product too hard and lose elasticity. For first use, start with middle values for test prints.

Printer Model	Screen Type	Bottom Layer Exposure	Normal Layer Exposure	Layer Height
Phrozen Make	Color-LCD	30 ~ 40 sec	8 ~ 12 sec	50 µm
Phrozen Sonic mini	Mono-LCD	20 ~ 30 sec	5 ~ 8 sec	50 µm
Miicraft 125 DLP	DLP	8 ~ 12 sec	1.5 ~ 2.5 sec	50 µm

💡 Elastic Resin Parameter Adjustment Tips:
• Poor adhesion: Increase bottom layer exposure by 5~10 seconds
• Product too hard, losing elasticity: Reduce normal layer exposure by 1~2 seconds
• Unclear details: Try reducing layer height to 25~35 µm
• Post-cure time: Recommend 10~30 minutes (too long will harden the product)

📋 Usage Steps (5 Steps to Complete)

Shake Well

Gently shake the bottle for 30 seconds before use to mix thoroughly

Set Parameters

Set recommended exposure time per printer model, use middle values for first use

Print Complete

Gently remove model after printing, avoid excessive force

IPA Wash

Wash with 95% IPA alcohol for 30~60 seconds to remove residual resin

UV Post-Cure

365~405nm UV light box for 10~30 minutes (avoid over-curing)

⚠️ Important: Post-Cure Time Control

Post-cure time is critical for elastic resins! Over-curing (more than 60 minutes) will cause the product to harden and lose its elastic properties. Start with 10 minutes and gradually adjust based on the elasticity of the finished product.

🖨️ Compatible Printers

QTS Flex 25A is compatible with all 395~405nm LCD/DLP/SLA 3D printers, including but not limited to:

Brand	Compatible Models	Screen Type
Phrozen	Make, Sonic mini, Sonic 4K, Sonic XL, Mighty 8K	Color-LCD / Mono-LCD
Anycubic	Photon Mono, Photon M3, Photon M5, Photon Ultra	Mono-LCD / DLP
Elegoo	Mars 3, Mars 4, Saturn 3, Saturn 4 Ultra	Mono-LCD
Creality	Halot-One, Halot-Sky, Halot-Max	Mono-LCD
FlashForge	Foto 8.9S, Foto 13.3	Mono-LCD
Miicraft	125, BullDog, Ultra	DLP

🏆 QTS Flex 25A vs Traditional Silicone Molding

Comparison Item	QTS Flex 25A (3D Printing)	Traditional Silicone Molding	Standard Elastic Resin
Development Time	✅ Hours	❌ Weeks to Months	✅ Hours
Mold Cost	✅ No Mold Required	❌ High Mold Costs	✅ No Mold Required
Complex Structures	✅ Complex Internal Structures	❌ Limited by Draft Angles	✅ Complex Structures
Rebound Performance	✅ Excellent (Shore 25A)	✅ Excellent	⚠️ Average (Shore 50A+)
Elongation	✅ 270~340%	✅ 200~600%	⚠️ 100~200%
Design Modification	✅ Instant, No Extra Cost	❌ New Mold Required	✅ Instant Modification
Small Batch Production	✅ From 1 Piece, Flexible	❌ Minimum Order Required	✅ From 1 Piece

❓ Frequently Asked Questions

Q: What's the difference between Flex 8A and Flex 25A? Which should I choose?

A: The main difference is hardness and rebound. Flex 8A (Shore 8A) is extremely soft with 700% elongation and gel-like texture, ideal for wearables and medical models requiring extreme softness. Flex 25A (Shore 25A) is slightly firmer with 270~340% elongation and better rebound support, suitable for functional buttons, cushion pads, and wristbands needing elasticity with some support.

Q: Why is post-cure time so important for elastic resins?

A: Post-cure time directly affects the elastic properties of the final product. Insufficient post-cure may leave a sticky surface; excessive post-cure (over 60 minutes) will gradually harden the product, losing elasticity. Start with 10~15 minutes and adjust based on the elasticity of the finished product.

Q: Can Flex 25A be used to make seals?

A: It can be used for prototype testing and low-pressure sealing applications. Shore 25A hardness and 270~340% elongation provide good sealing performance. Note that 3D printed seals may have layer lines; for high-pressure or demanding sealing applications, functional testing is recommended first.

Q: Is elastic resin printing prone to failure? What should I watch out for?

A: Elastic resins require more attention than hard resins. Key points: (1) Ensure sufficient bottom layer exposure for good adhesion; (2) Avoid overly thin structures (minimum wall thickness 1mm recommended); (3) Set supports appropriately to avoid difficulty in removal; (4) Don't print too fast.

Q: Can Flex 25A products contact skin?

A: Fully cured products have a silicone-like feel suitable for wearable device prototypes. Note that photopolymer resin products are not medical-grade materials. For applications with prolonged direct skin contact, conduct skin testing first and ensure complete post-curing.

Q: What is the shelf life of this resin?

A: Stored sealed, away from light, at 15~35°C, the shelf life is 12 months. After opening, use within 6 months for best printing results. Always ensure the cap is tightly sealed after use.

Q: Can Flex 25A be mixed with other QTS resins?

A: Mixing different resin formulas is not recommended as it may affect curing characteristics and final performance. If you need a hardness between two options, contact QTS technical support for professional formula recommendations.

Q: How should waste resin be disposed of?

A: Never pour liquid resin directly down the drain. Fully cure waste resin into solid form before disposing as general recyclable waste. IPA alcohol used for washing also requires proper disposal and should not be poured into drains.

🏆 Why Choose QTS Technology?

🧪 30+ Years Chemical R&D Background

Deep chemical science foundation ensures precision and stability in every resin formula. We're not just selling resin — we're materials science researchers.

🏭 Made in Taiwan

100% Taiwan R&D and manufacturing with strict quality control and high batch consistency. Supporting Taiwan manufacturing with fast local service response.

👥 8000+ Taiwan Customers Trust Us

The long-term choice of over 8000 Taiwan customers, spanning schools, enterprises, research institutions, and individual creators. Reputation built on real user experiences.

🔧 Professional Technical Support

Complete printing parameter recommendations and troubleshooting services. Whenever you encounter technical issues, the QTS technical team is ready to support you.

💎 Strict Quality Control

Every batch of resin undergoes rigorous quality testing before shipping, ensuring hardness, elongation, and curing characteristics meet standard specifications.

🧾 Transparent & Worry-Free Shopping

All products are tax-inclusive. Official receipts provided with every shipment for easy expense reporting. Corporate procurement made simple.

🟡 Experience QTS Flex 25A Silicone-Like Elastic Resin Now

Shore 25A Soft Touch × 270~340% Elongation × Excellent Rebound Performance
Made in Taiwan, Quality Guaranteed, Technical Support Always Ready

🛒 Buy Now 📧 Technical Inquiry

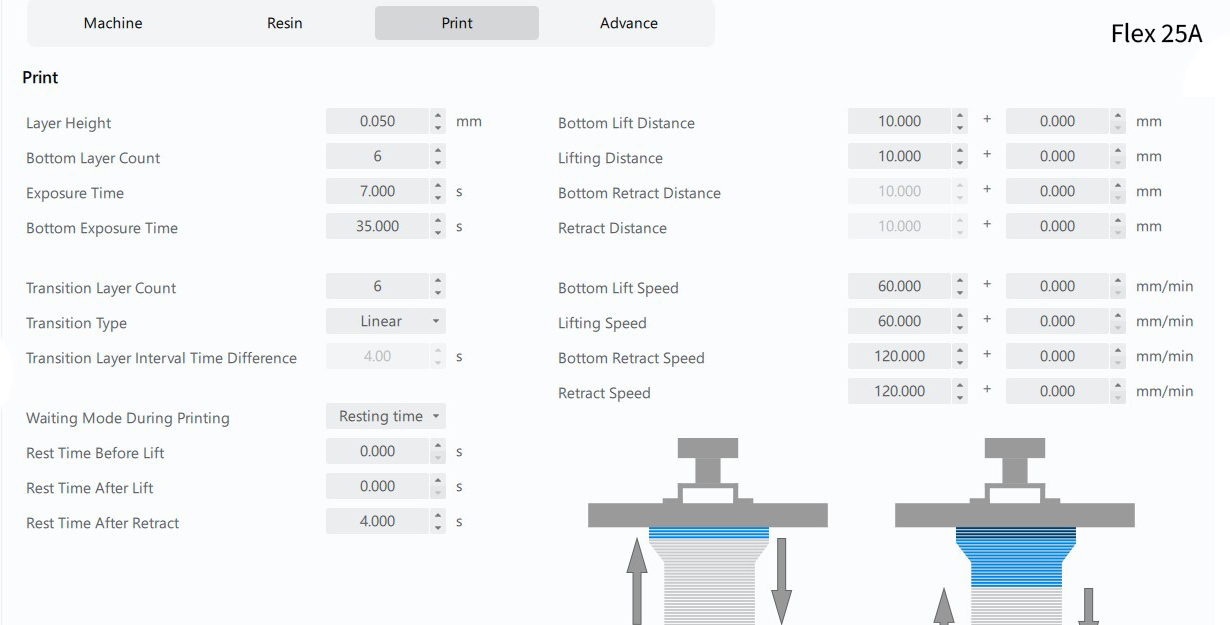

Print Parameters

Additional details
