QTS Flex 46A Clear Flexible Resin (405nm) - Made in Taiwan | Rubber-Like, High-Elasticity, Transparent

See the endless possibilities of elasticity! QTS Flex 46A Clear Flexible Resin, made in Taiwan, offers rubber-like Shore 46A hardness and high elasticity. Prints are crystal-clear and durable, a unique choice for clear tubing and flexible prototypes.

全館消費金額滿$8,000，即享免運🚚 on selected categories

QTS Resins Promotion on selected categories

NT$950

NT$810

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )

Quantity Product set quantity

Buy Together and Save More (At most {{ addItemQuantity }} item(s))

魔速洗清洗劑/3D列印清洗劑/樹脂清洗劑 - 1KG(適用SLA/DLP/LCD光固化3D列印成品)

Sale NT$250

QTS UV Polish Master (Glossy/Matte) 200g

Sale NT$299

QTS ColorMix 30ML x Eight colors - Made in Taiwan | Color Mixing Kit

Sale NT$650

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Description

Shipping & Payment

Customer Reviews

Description

QTS Flex 46A Clear Flexible Resin | Shore 46A | 120~160% Elongation | Transparent Tubing/Light Guide | Made in Taiwan

🏭 QTS Technology — Taiwan-Based R&D & Manufacturing

Over 30 years of chemical engineering expertise, dedicated to 3D printing material R&D, serving 8,000+ customers across Taiwan.

30+Years Chemical Background

15+Years 3D Printing Experience

8000+Taiwan Customers

100%Made in Taiwan

QTS Flex 46A Clear Flexible Resin
See the Infinite Possibilities of Elasticity

Name: QTS Flex 46A Clear Flexible Resin (405nm) - Made in Taiwan | Rubber-Like, High-Elasticity, Transparent
SKU: 651cd68fd3807100172b491a
Price: 810.0 TWD
Availability: InStock

Developed and manufactured in Taiwan, delivering Shore 46A rubber-like hardness with high elasticity. Crystal-clear finish, bend-resistant — the unique choice for transparent tubing, light guide prototypes, and flexible wearable devices.

Shore 46A 120~160% Elongation Crystal Clear Low Viscosity 100~150 cps 405nm Compatible Made in Taiwan

46A Shore Hardness

Rubber-like soft feel

160% Max Elongation at Break

High elasticity, no tearing

100% Crystal Clear

Transparent, light guide applications

🔍 QTS Flex Series Selection Guide

Choose the right Flex series product based on your application needs:

Flex 8A

Ultra-soft silicone-like
700% elongation
Wearables, medical models

Ultra Soft

Flex 25A

Silicone-like elastic
270~340% elongation
Buttons, cushion pads

Soft

Flex 46A ✓

Clear rubber-like
120~160% elongation
Tubing, light guides

Clear Elastic

Flex 45A

Black rubber feel
TPE/TPU-like
Tires, seals

Rubber Feel

⭐ Six Core Advantages

💎

Crystal Clear Transparency

Highly transparent finish, ideal for light guide components, transparent tubing, and visual display prototypes.

🔄

High Elasticity 120~160%

Elongation at break of 120~160%, can be repeatedly bent and stretched without tearing.

🖐️

Shore 46A Rubber-Like Feel

Hardness between silicone and rubber, providing comfortable rubber-like feel for wearable and grip applications.

⚡

Low Viscosity, Easy Printing

Viscosity only 100~150 cps, excellent flowability, resin fills details thoroughly for higher print success rate.

🔧

Wide Printer Compatibility

Compatible with all 395~405nm LCD/DLP/SLA printers including Phrozen, Anycubic, Elegoo and more.

🇹🇼

Taiwan R&D & Manufacturing

30+ years of chemical engineering background, stable quality, local technical support for fast response.

💎 Unique Advantages of Clear Flexible Resin

QTS Flex 46A is one of the rare clear soft flexible resins on the market, combining transparency and elasticity. The finished part is light-transmissive, ideal for components requiring both flexibility and transparency — such as transparent tubing, fiber optic guides, transparent button covers, and medical models. After post-curing, the surface is dry and tack-free with improved clarity.

🎯 Six Key Application Areas

💡 Light Guide Component Prototypes

Transparent elastic properties make it ideal for light guide tubes, fiber optic guides, and LED diffuser prototypes that can bend and transmit light.

🔬 Transparent Tubing & Conduits

Create transparent soft tubing, medical catheter prototypes, and fluid transport conduits with visible fluid flow for R&D validation.

⌚ Wearable Device Prototypes

Transparent watch bands, wristbands, and wearable sensor housings combining elasticity and aesthetics for product appearance validation.

🛡️ Transparent Cushion & Protection

Transparent phone case prototypes, cushion pads, and shock-absorbing covers that protect while showcasing internal design.

🏥 Medical & Biological Research

Transparent organ models, vascular models, and microfluidic chip prototypes with visible internal structures for medical research and education.

🎨 Creative Design & Art

Transparent elastic art installations, transparent soft sculptures, and designer special-effect pieces showcasing unique visual aesthetics.

📊 Complete Technical Specifications

🧪 Photopolymer Resin Physical Properties (Liquid State)

Property	Value	Notes
Appearance	Liquid	Crystal clear
Color	Clear (Transparent)	High transparency
Viscosity @ 25°C	100 ~ 150 cps	Low viscosity, easy to print
Wavelength	395 ~ 405 nm	LCD / DLP / SLA
Volume	500 g	—

⚙️ Mechanical Properties After Curing

Test Item	Value	Test Method
Shore Hardness A	46 A	ASTM D2240
Elongation at Break	120 ~ 160 %	ASTM D638
Tensile Strength	3 ~ 5 MPa	ASTM D638
Compatible Technology	LCD / DLP / SLA	—

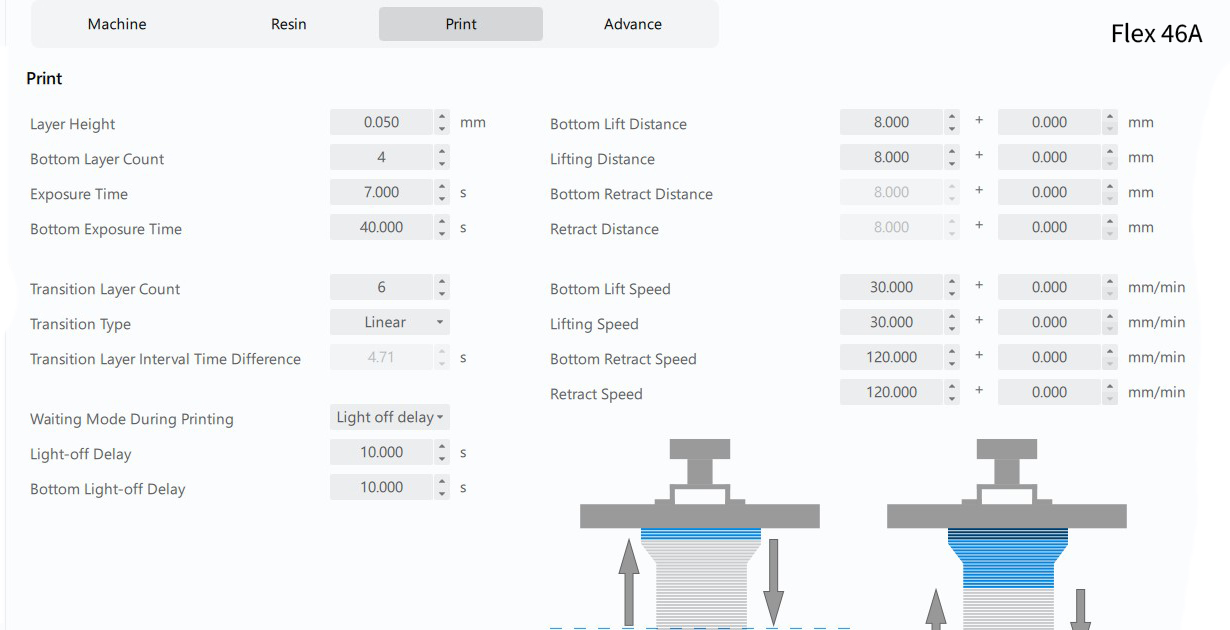

⚙️ Recommended Exposure Parameters

⚠️ Flexible Resin Printing Notes

Flexible resins are recommended to use thinner layer heights (25~50μm) for best results. Over-exposure will reduce elasticity — strictly control exposure time. Post-cure time should not be too long (10~30 minutes recommended) to maintain optimal elasticity.

Printer Model	Screen Type	Bottom Exposure	Normal Layer Exposure	Layer Height
Phrozen Make	Color-LCD	30 ~ 40 sec	8 ~ 10 sec	50 μm
Phrozen Sonic mini	Mono-LCD	20 ~ 30 sec	4 ~ 5 sec	50 μm
Miicraft 125	DLP	8 ~ 10 sec	0.9 ~ 1.1 sec	50 μm

※ These are recommended parameters. Actual values may vary by printer model and ambient temperature. Test with middle values first when using for the first time.

📋 Usage Steps (5 Easy Steps)

Shake Well

Gently shake the bottle for 30 seconds before use to ensure thorough mixing.

Set Parameters

Set recommended exposure time per printer. Use 25~50μm layer height for flexible resins.

Print Complete

After printing, carefully remove the model. Avoid excessive bending of uncured structures.

IPA Wash

Wash with IPA or 95% alcohol for 2~3 minutes to remove residual resin from the surface.

Post-Cure (Required)

Place under 365~405nm UV light for 10~30 minutes for optimal elasticity and dry surface.

❓ Frequently Asked Questions

Q: What's the difference between Flex 46A clear flexible resin and Flex 45A black rubber-like resin?

A: Both have similar hardness (46A vs 45A), but differ in appearance and application. Flex 46A is crystal clear, ideal for light guides, transparent tubing, and visual displays requiring transparency. Flex 45A is matte black, suited for tires, seals, and applications requiring rubber appearance. Flex 46A has lower viscosity (100~150 cps) for higher print success rates.

Q: Does the clear flexible resin maintain transparency after post-curing?

A: Yes, QTS Flex 46A maintains good transparency after post-curing. Use a 365~405nm UV cure box for 10~30 minutes. Excessive post-curing may cause slight yellowing — control post-cure time carefully.

Q: Can clear flexible resin be used for light guide components?

A: Absolutely! QTS Flex 46A's transparency and elasticity make it ideal for light guide component prototypes. The finished part can bend while transmitting light, perfect for flexible fiber optic guides and LED diffuser prototypes.

Q: What special considerations are there for printing flexible resin?

A: Use thinner layer heights (25~50μm) and avoid over-exposure (reduces elasticity). Be careful when removing prints — avoid excessive bending of uncured structures. Keep post-cure time to 10~30 minutes to maintain optimal elasticity.

Q: How should clear flexible resin be stored?

A: Store sealed at 15~35°C in a cool, dry place away from direct sunlight. Use within 6 months of opening. Filter used resin and store separately to avoid mixing in cured particles.

Q: How do I clean clear flexible resin prints?

A: Wash with 95% alcohol or IPA for 2~3 minutes with gentle agitation. Avoid prolonged soaking (over 5 minutes) which may affect transparency and elasticity. Post-cure immediately after washing.

🏆 Why Choose QTS Technology?

🧪 30+ Years Chemical Background

Deep chemical R&D foundation ensures formulation stability and consistent performance across every batch.

💎 Strict Quality Control

Every batch undergoes rigorous physical property testing and quality verification to ensure products meet specifications.

🔧 Professional Technical Support

Comprehensive parameter recommendations and troubleshooting to help you get started quickly and maximize material performance.

🇹🇼 Taiwan Local Manufacturing

100% Taiwan R&D and manufacturing, fast local service response, trusted by 8,000+ Taiwan customers.

🛡️ Transparent & Trustworthy Shopping

All prices include tax, invoices provided with every shipment for easy accounting and reimbursement.

📦 Complete Product Line

From standard resins, engineering resins, flexible resins to dental resins — one-stop solution for all your 3D printing needs.

💎 Experience the Infinite Possibilities of Clear Elasticity!

QTS Flex 46A Clear Flexible Resin — Made in Taiwan, Quality Guaranteed

Buy Now Technical Inquiry
