QTSFlex 8A Resin: Where 3D Printing Meets the Ultimate Softness of Silicone
QTSFlex 8A is a revolutionary material that challenges the boundaries ofimagination. We have successfully combined the extreme softness of siliconewith the freeform capabilities of 3D printing to create this ultra-soft resin,featuring a Shore 8A hardness and a massive 700% elongation. Fromnow on, your soft prototypes are no longer limited by molds; any complex softstructure can be precisely printed.
Whyis Flex 8A a One-of-a-Kind Choice?
-
The World's Softest, Silicone-Like Feel: A Shore 8A hardness gives prints unparalleled softness and elasticity, with a touch and feel extremely close to everyday silicone products. It can absorb impacts, provide cushioning, and offers a gentle, skin-friendly feel.
-
Massive 700% Elongation, Tough & Tear-Resistant: You can freely bend, stretch, compress, and twist the finished parts, and they will spring back to shape without breaking or tearing. This powerful resilience makes it ideal for creating durable parts that need to withstand repeated deformation.
-
Low Viscosity, High Success Rate: Despite its extreme performance, Flex 8A maintains a low viscosity and good fluidity. This ensures a high success rate during printing and makes the post-processing cleaning much simpler.
-
Unleash Design Freedom: Traditional silicone parts require expensive and design-restrictive molds. Flex 8A allows you to directly print soft parts with complex internal structures and unconventional shapes, perfectly realizing your creative vision.
CoreApplication Areas:
-
Wearable Device Prototypes: Wristbands for smartwatches, eartips, and skin-friendly padding for VR/AR headsets.
-
Medical & Assistive Device Models: Soft human organ models for surgical simulation, custom shoe insoles, and rehabilitation aids.
-
Cushioning & Sealing Parts: Soft robotic grippers, custom vibration dampening pads, and waterproof sealing gaskets.
-
Special Effects & Props: Prosthetics for special effects makeup and movie props with unique performance characteristics.
Flex8A Resin Specifications
-
Technology: LCD / DLP / SLA 3D Printing
-
Wavelength: 395~405nm
-
Shore Hardness: 8A
-
Elongation at Break: 500-700%
-
Tensile Strength: 1-1.5 MPa
-
Viscosity @25°C: 70-100 cps
-
Color: Yellow
-
Package: 500g
UsageInstructions & Safety Recommendations
Operation& Post-Curing:
-
Shake Well: Before use, gently shake the bottle to ensure the resin is thoroughly mixed.
-
Cleaning: After printing, clean the model with 95% Isopropyl Alcohol (IPA) or a dedicated resin cleaning solution.
-
Post-Curing (Essential): To achieve optimal mechanical properties and a tack-free surface, UV post-curing is mandatory. Place the cleaned model in a 365-405nm UV curing chamber for 10-60 minutes (time varies with model thickness).
Storage& Disposal:
-
Storage: Seal and store in a cool, dry place at 15-35°C, away from direct sunlight. Filter and store used resin separately.
-
Disposal: Do not pour liquid resin down the drain. Please fully cure waste resin into a solid state and dispose of it as "General Recyclable Waste."
SafetyPrecautions:
-
Personal Protection: Always wear gloves, safety goggles, and protective clothing when handling resin. Wash hands with soap after each operation.
-
Ventilation: It is strongly recommended to use the resin in a well-ventilated area.
-
Keep Away from Children: Store resin properly and keep it out of reach of children.
Why QTS? Choose QTS for a ProfessionalCommitment from Taiwan
At QTS, we don't just sell products; we arededicated to delivering a perfect printing experience from the moment you openthe bottle to the finished model. With our independent R&D capabilities anddeep industry knowledge based in Taiwan, we provide the strongest support foryour detailed creations.
🇹🇼 100% Engineered & Made in Taiwan
From formula design and raw materialsourcing to final production, the entire process is completed in Taiwan. Thisallows us to respond quickly to market needs and ensure every batch meets ourstrict quality standards, eliminating issues like color deviation andinconsistent performance.
🤝 Over15 Years of Industry Trust
With over fifteen years in Taiwan's 3Dprinting scene, we've served over 8,000 clients, from individual creators tolarge corporations. We understand your needs.
🔧Universal Compatibility
Our resins undergo extensive testing acrossmultiple brands and machine types. They are fully compatible with all 405nmLCD, DLP, and SLA 3D printers on the market. ✅ Phrozen ✅ Anycubic ✅ Elegoo ✅ Creality ...and more!
🧪 ExpertTechnical Support
Encounter a problem? Our team is yourknowledge base. We offer more than just products; we provide solutions. Fromparameter settings and slicing techniques to post-processing advice, we areeager to share our hands-on experience to help you overcome any challenge.
🍃 Focuson User Experience
We understand that odor and operationalsafety are major concerns for resin users. That's why we are committed todeveloping "low-odor, low-irritation" formulas and ensuring ourproducts are easy to clean, making your creative process more comfortable andsafer.
🧾Transparent Purchasing Experience
All prices on our website include tax, andan official invoice is provided with every shipment, ensuring clarity andsecurity for both personal and corporate purchases.
Choosing QTS means choosing a stable,precise, and reliable printing partner.

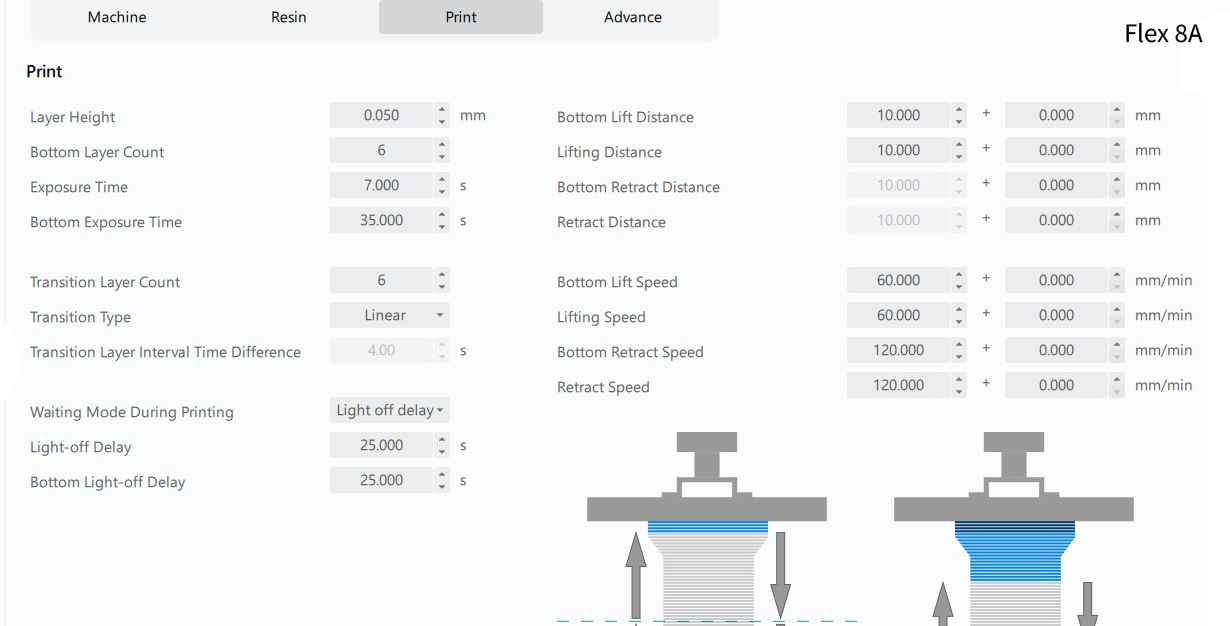

Print Parameters
Usage Instructions
✦ Shake Well Before Use: Ensure the resin is thoroughly mixed by shaking well before use to prevent settling.
✦ Safety Precautions: This material is a photopolymer resin. Always wear rubber gloves during operation to avoid prolonged skin contact, which could cause allergic reactions or irritation.
✦ Cleaning After Printing: After printing, clean the printed models with alcohol, isopropyl alcohol, or a specialized cleaning agent.
✦ Exposure Parameters Setting: Exposure settings can vary between printer brands and models. For optimal results, it is recommended printing a calibration test piece to confirm that the exposure parameters are suitable for your specific printer.
※ Due to differences between 3D printer brands, curing parameters for different resins may vary. The suggested values are for your reference. In order to achieve the best results, please make adjustments based on your specific needs and conditions.
Post-Curing Treatment
After forming, this material must undergo a thorough post-curing process to achieve the best mechanical properties and durability.
✦ UV Post-Curing: Use a UV curing box with a wavelength of 365–405 nm for 10–60 minutes (the duration depends on the thickness of the model; thicker models require longer curing time). Sunlight is insufficient for post-curing.
Recommended post-curing time
✦ 5-7 seconds for a layer thickness of 50um
✦ 7-10 seconds for a layer thickness of 100um
Mechanical Properties of QTS Flex 8A
✔️ Viscosity: 70~100 cps(@25℃)
✔️ Shore Durometer: Shore 8A
✔️ Elongation: 500-700%
✔️ Tensile Strength: 1-1.5(Mpa)
✔️ Tensile modulus: <0.01(GPa)
Packaging Specifications
500g/bottle, black opaque plastic container
Color: Yellow
QTS team independently develops and produces UV-Curable resin for 3D printing in Taiwan, which is suitable for 3D molding equipment with a wavelength of 395~405nm. This resin is compatible with a variety of 3D printers DLP (Digital Light Processing), SLA (Stereo Lithography Apparatus), and LCD(Liquid Crystal Display) masking, etc. QTS UV-Curable resin has low irritation, low odor, rich colors, and can be customized. A variety of special resins are available for purchase, including Basic, high-toughness, PPlike, flexible and highly ductile Flex, Water washable, high-hardness, and high-temperature resin that can withstand temperatures up to 260 degrees Celsius.
Characteristic
✦ The resin has low viscosity and good fluidity with a fast photopolymerization reaction speed, which saves printing time and reduces costs.
✦ After printing, residual resin is easy to clean. The surface presents a natural, delicate matte finish after cleaning.
✦ It can be customized to achieve various hardness levels, flexibility, colors, and opacity.
✦ The printing and curing parameters are flexible, resulting in a high yield and making it easy to use.
✦ The resin has low stimulation, low odor, and does not affect the indoor working environment.
※ Due to differences between 3D printer brands, curing parameters for different resins may vary. The suggested values are for your reference. In order to achieve the best results, please make adjustments based on your specific needs and conditions.
Resin Operation Guidelines
✦ Gently shake the resin to ensure it is well-mixed before pouring it into the resin vat. Avoid direct exposure to light. It is best to store the resin at room temperature (15-35°C) in a dry environment.
✦ Please filter residual resin and seal it in a container after use. New and used resin should not be mixed; please store them separately and avoid exposure to air.
✦ Do not tip the resin arbitrarily. Please solidify the resin first, then handle it as 'general waste' to the sanitation team."
Safety Guidelines
✦ Skin Irritation: Resin may cause mild skin irritation. If you experience any allergic reactions, please stop using the material immediately.
✦ Protective Gear: Always wear gloves, safety goggles, and protective clothing when handling resin. Wash your hands with a cleanser after every operation.
✦ Avoid Contacting with eyes and Forbid Ingestion: Pleas avoid contacting with eyes and it is forbidden to ingest the resin. If the resin gets into your eyes, rinse them thoroughly with plenty of water and seek medical attention immediately.
✦ Ventilation: The resin has a slight odor. It is recommended using it in a well-ventilated area.
