QTS PP-like Resin: Injecting Real-WorldToughness into Your Functional Prototypes
In product development, nothing is morevaluable than a prototype that truly reflects the performance of the finalproduct. QTS PP-like is an engineering resin designed to simulate one of themost common plastics in the industry: Polypropylene (PP). It perfectlyreplicates the core characteristics of PP material—strong, flexible, andlow-friction—allowing you to create genuinely functional snap-fits, livinghinges, and durable enclosures with the efficiency of 3D printing.
Why is PP-like the Go-To Assistant forEngineers and Designers?
- Real-World Toughness and Flexibility: With an elongation at break of up to 40%, PP-like prints can withstand repeated bending, squeezing, and impact without easily breaking. It is your best choice for validating snap-fit designs and testing the lifespan of living hinges.
- Huge Potential for Optical Clarity: Don't be limited by its initial translucent appearance! As shown in the picture, after meticulous sanding and a coat of clear varnish, the printed part can achieve an optical-grade transparency comparable to acrylic injection-molded parts. This makes it suitable not only for structural components but also for tasks like transparent housings, light pipes, and fluid-flow windows.
- Low-Friction, Smooth Surface: Simulating the self-lubricating properties of PP, it is ideal for parts that require smooth sliding or a precise fit, reducing wear and tear on prototypes during dynamic testing.
- Low Viscosity, Easy to Handle: The low viscosity formula (200-300 cps) ensures that the resin flows quickly to easily fill the details of complex models, while also making the post-print cleaning process simpler and more efficient.
Core Application Areas:
- Functional Prototypes: Creating snap-fits, buckles, and container lids that require repeated opening and closing.
- Living Hinges: Printing monolithic living hinge structures for real-world flexibility testing.
- Transparent Components: Making clear housings, covers, and light pipes for observing internal structures.
- Impact-Resistant Parts: Used for jigs, fixtures, or any parts that need to withstand a certain degree of impact and compression.

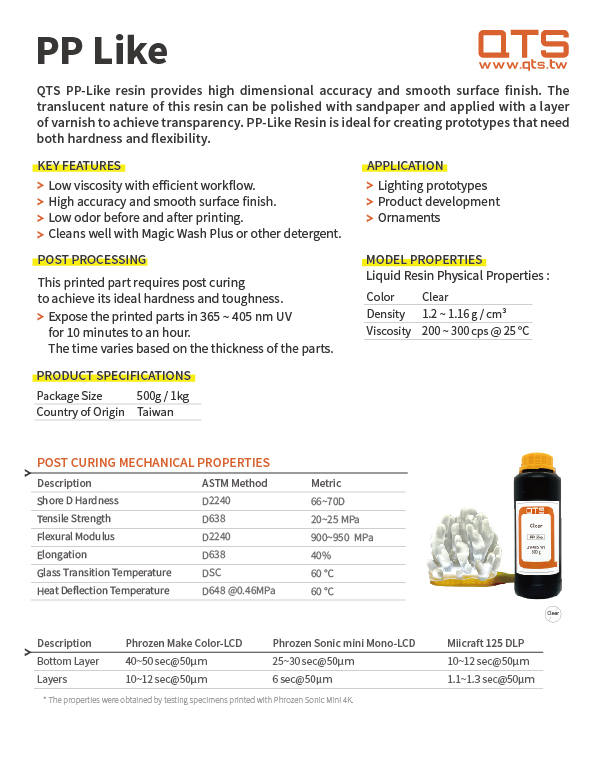

PP-like Resin Specifications
- Technology: LCD / DLP / SLA 3D Printing
- Wavelength: 395~405nm
- Shore Hardness: 66-70D
- Elongation at Break: 40%
- Tensile Strength: 20-25 MPa
- Viscosity @25°C: 200-300 cps
- Color: Clear
- Package: 500g
Usage Instructions & SafetyRecommendations
Operation & Post-Curing:
- Shake Well: Before use, gently shake the bottle to ensure the resin is thoroughly mixed.
- Cleaning: After printing, clean the model with 95% Isopropyl Alcohol (IPA) or a dedicated resin cleaning solution.
- UV Post-Curing: To achieve the best toughness, it is recommended to place the cleaned model in a UV curing chamber, curing the front for 20 minutes and the back for another 20 minutes to ensure it is fully cured.
- Achieving High Transparency (Optional): Wet-sand the fully cured model with progressively finer grits of sandpaper (e.g., 400 -> 800 -> 1200 -> 2000) until the surface is smooth. Then, apply a high-quality clear coat varnish to achieve an optical-grade transparent effect.
Storage & Disposal:
- Storage: Seal and store in a cool, dry place at 15-35°C, away from direct sunlight. Filter and store used resin separately.
- Disposal: Do not pour liquid resin down the drain. Please fully cure waste resin into a solid state and dispose of it as "General Recyclable Waste."
Safety Precautions:
- Personal Protection: Always wear gloves, safety goggles, and protective clothing when handling resin. Wash hands with soap after each operation.
- Ventilation: It is strongly recommended to use the resin in a well-ventilated area.
- Keep Away from Children: Store resin properly and keep it out of reach of children.
Why QTS? Choose QTS for a ProfessionalCommitment from Taiwan
At QTS, we don't just sell products; we arededicated to delivering a perfect printing experience from the moment you openthe bottle to the finished model. With our independent R&D capabilities anddeep industry knowledge based in Taiwan, we provide the strongest support foryour detailed creations.
🇹🇼 100% Engineered & Made in Taiwan
From formula design and raw materialsourcing to final production, the entire process is completed in Taiwan. Thisallows us to respond quickly to market needs and ensure every batch meets ourstrict quality standards, eliminating issues like color deviation andinconsistent performance.
🤝 Over15 Years of Industry Trust
With over fifteen years in Taiwan's 3Dprinting scene, we've served over 8,000 clients, from individual creators tolarge corporations. We understand your needs.
🔧Universal Compatibility
Our resins undergo extensive testing acrossmultiple brands and machine types. They are fully compatible with all 405nmLCD, DLP, and SLA 3D printers on the market. ✅ Phrozen ✅ Anycubic ✅ Elegoo ✅ Creality ...and more!
🧪 ExpertTechnical Support
Encounter a problem? Our team is yourknowledge base. We offer more than just products; we provide solutions. Fromparameter settings and slicing techniques to post-processing advice, we areeager to share our hands-on experience to help you overcome any challenge.
🍃 Focuson User Experience
We understand that odor and operationalsafety are major concerns for resin users. That's why we are committed todeveloping "low-odor, low-irritation" formulas and ensuring ourproducts are easy to clean, making your creative process more comfortable andsafer.
🧾Transparent Purchasing Experience
All prices on our website include tax, andan official invoice is provided with every shipment, ensuring clarity andsecurity for both personal and corporate purchases.
Choosing QTS means choosing a stable,precise, and reliable printing partner.
