QTS Rigid HT120 High-Temp Resin (405nm) - Made in Taiwan | 120°C Heat Resistance | Stronger than ABS

QTS Rigid HT120: A High-Temp Rigid Resin That Outperforms Traditional Engineering Plastics

When your design must face the dual challenges of high temperature and high stress, you need a material that makes no compromises. QTS Rigid HT120 is a top-tier engineering resin born to replace traditional plastics. It not only boasts a high Heat Deflection Temperature (HDT) of 120°C but also features ultra-high mechanical strength (Tensile Strength: 80-85 MPa) and stiffness (Tensile Modulus: >3 GPa) that surpass materials like ABS and Nylon 6. From now on, you no longer have to sacrifice strength for heat resistance, or vice versa.

Why is Rigid HT120 the Ultimate Solution for Industrial Applications?

• Unafraid of Heat, Solid as a Rock: Its core advantage lies in its 120°C heat resistance. Whether used as a short-run injection mold enduring the heat of molten plastic or as a fixture next to an engine block, it maintains its shape and strength without softening or deforming.
• Strength is Justice, Surpassing ABS: With a tensile strength up to 85 MPa and a tensile modulus over 3 GPa, its performance exceeds that of traditional FDM engineering plastics in many aspects. This means you can achieve the same or even higher structural strength with lighter and thinner designs.
• Exceptional Dimensional Stability: Inheriting the "dual-low" characteristics of the QTS engineering series—low shrinkage (<0.5%) and low water absorption (<0.5%). This ensures your molds, jigs, and parts maintain micron-level precision from printing to long-term use.
• Chemical Resistance: It can resist erosion from common industrial solvents like alcohol, ensuring the reliability and lifespan of the finished parts in complex working environments.



Core Application Areas:

• Rapid Tooling: Creating short-run injection molds and vacuum forming molds for small-batch production.
• High-Load Jigs & Fixtures: Used for high-strength positioning jigs and testing fixtures on production lines.
• Automotive & Aerospace: Heat-resistant components around the engine bay, aerodynamic test parts, drone structural components.
• Fluid Engineering: Manufacturing valve blocks, manifolds, and pump housings that can withstand high-temperature fluids or gases.



Rigid HT120 Resin Specifications

• Technology: LCD / DLP / SLA 3D Printing
• Wavelength: 395~405nm
• Heat Deflection Temp (HDT @0.45MPa): 120°C
• Tensile Strength: 80-85 MPa
• Tensile Modulus: > 3 GPa
• Shore Hardness: 85-90D
• Linear Shrinkage: < 0.5%
• Viscosity @25°C: 200-400 cps
• Color: White
• Package: 1KG

Usage Instructions & Safety Recommendations

Operation & Post-Curing:

1. Shake Well: Before use, gently shake the bottle to ensure the resin is thoroughly mixed.
2. Cleaning: After printing, rinse or ultrasonically clean the model with 95% Isopropyl Alcohol (IPA) or a dedicated resin cleaning solution for a maximum of 2 minutes.
3. UV Post-Curing: Place the cleaned model in a UV curing chamber for 10-60 minutes (time varies with model thickness) to achieve optimal mechanical properties.
4. Thermal Treatment (Crucial Step): To fully activate its high-temperature resistance, it is essential to place the UV-cured model in an oven and heat at 100°C for 10 minutes for deep curing.

Storage & Disposal:

• Storage: Seal and store in a cool, dry place at 15-35°C, away from direct sunlight. Filter and store used resin separately.
• Disposal: Do not pour liquid resin down the drain. Please fully cure waste resin into a solid state and dispose of it as "General Recyclable Waste."

Safety Precautions:

• Personal Protection: Always wear gloves, safety goggles, and protective clothing when handling resin. Wash hands with soap after each operation.
• Ventilation: It is strongly recommended to use the resin in a well-ventilated area.
• Keep Away from Children: Store resin properly and keep it out of reach of children.

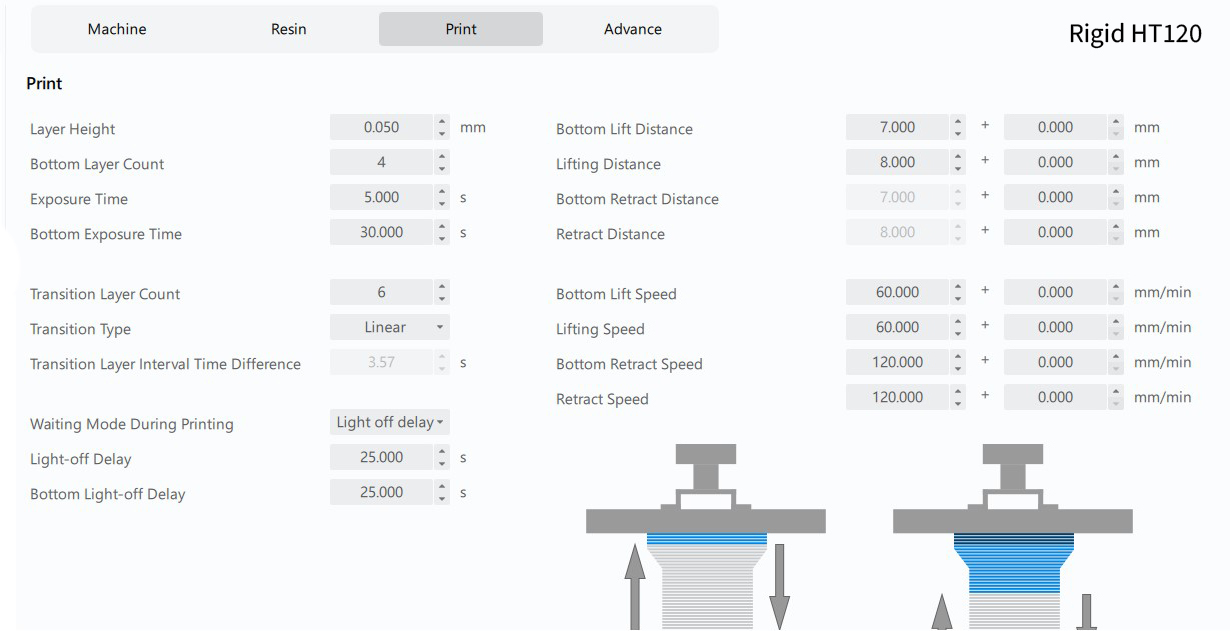

Print Parameters
