分類

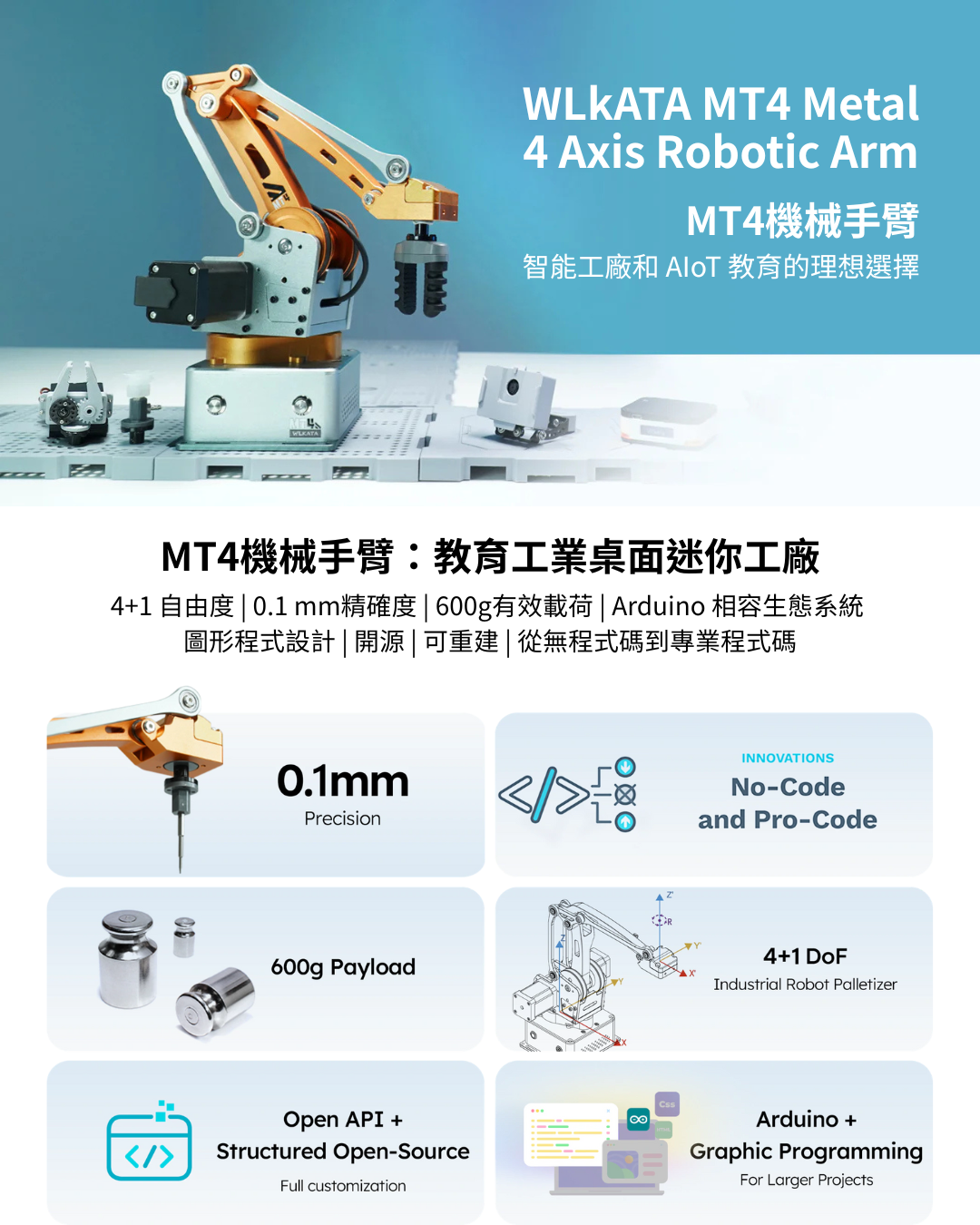

MT4機械手臂:教育工業桌面迷你工廠
4+1 自由度 | 0.1 mm精確度 | 600g有效載荷 | Arduino 相容生態系統
圖形程式設計 | 開源 | 可重建 | 從無程式碼到專業程式碼
使用 WLKATA MT4 打造智慧迷你工廠
自動分類、組裝和物流—全部在您的桌面上完成。 0.1 mm精度、Arduino 相容且無程式碼友好。
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件
產品名稱 |
數值 |
軸數 |
4+1 |
標準有效載荷 |
500g |
最大有效載荷(靠近桌面移動) |
600g |

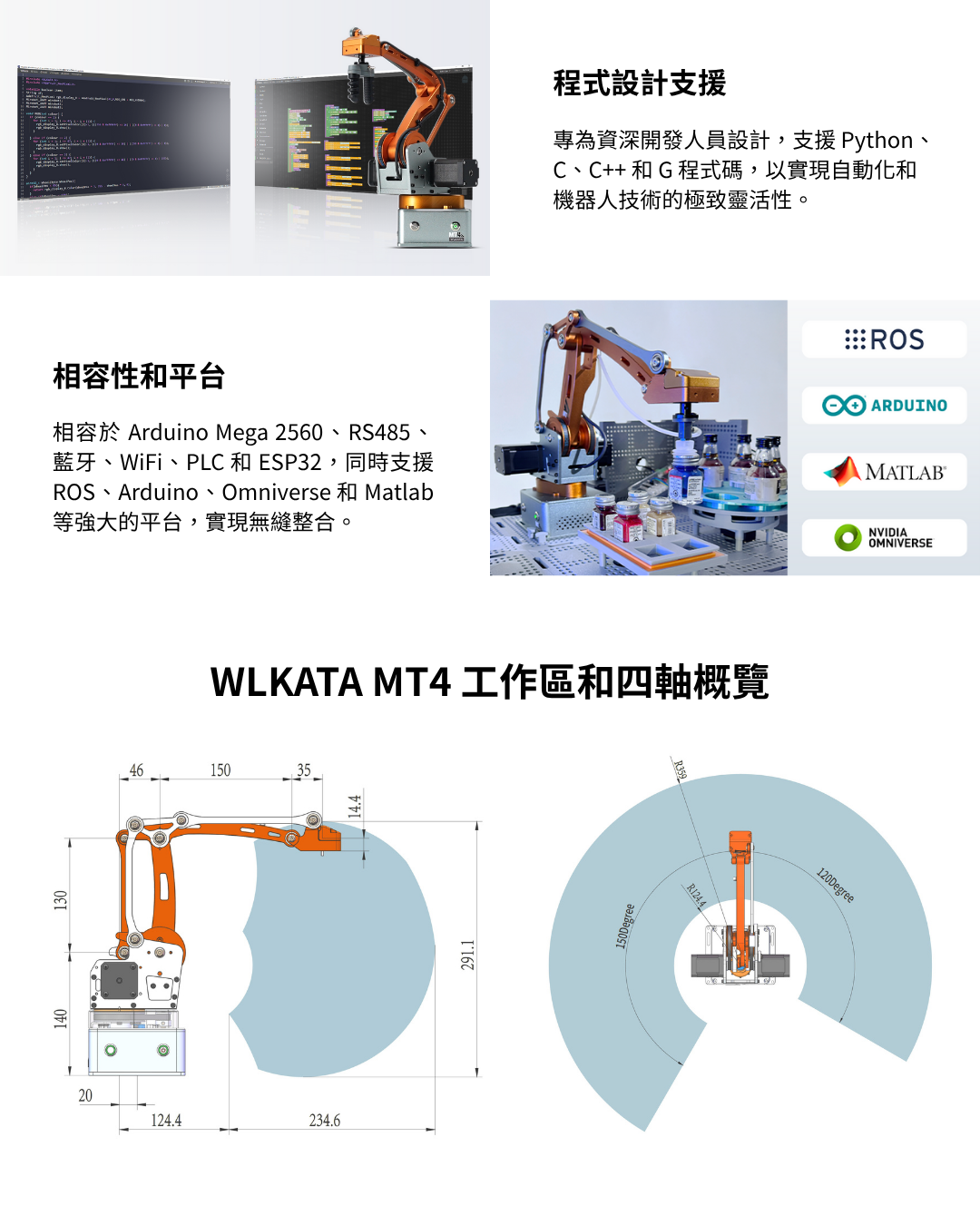

工作區 |
359mm |
底座尺寸 |
110mm*130mm |
重複定位精度 |
±0.1mm |
淨重(機械手臂) |
3.1公斤 |
四種關節類型 |
靜音高精度步進馬達+減速機 |
溝通方式 |
USB轉串口/UART |
材料 |
鋁合金 |
控制晶片 |
ATmega 2560 |
包裝尺寸 |
395 × 368 × 255 mm |

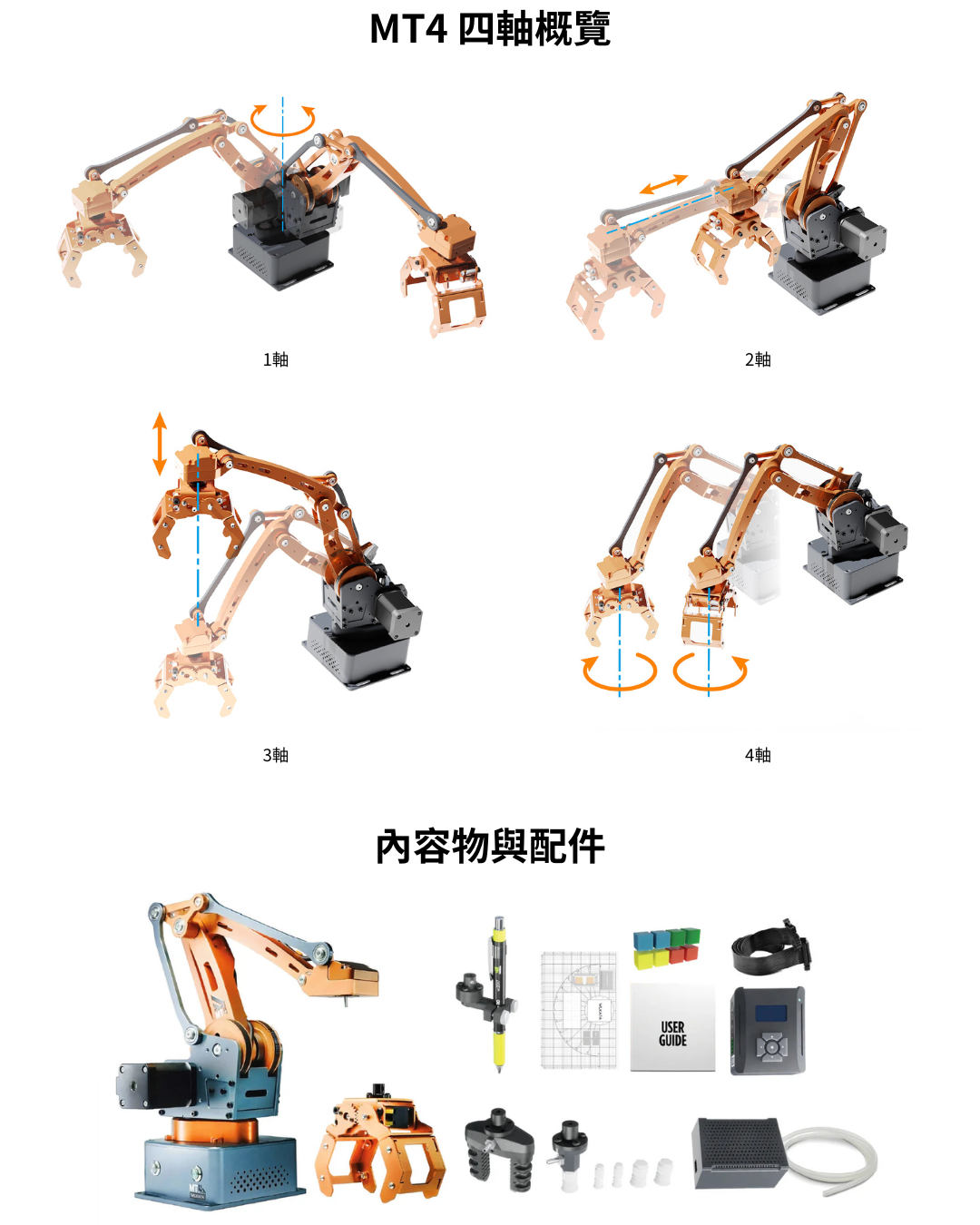

1軸 |
-120°~+140°最大速度200°/s |
2軸 |
-33°~+57°最大速度200°/s |
3軸 |
-14°~+57°最大速度200°/s |
4軸 |
-180°~+180°最大速度150°/s |
電源電壓 |
100V~240V,50/60Hz |
電源輸入 |
12V / 4A 直流;最大 50W |
工作環境 |
-10℃~60℃ |
螢幕尺寸 |
1.3吋OLED |
支援串行通訊方式 |
USB/UART/RS485/WIFI/藍牙 BT/藍牙 BLE |
晶片 |
Xtensa® 32 位元 LX6 單核心處理器 168MHz |
螢幕顏色 |
單色OLED |
材料 |
ABS工程材料 |
重量 |
83.9g |
主頻 |
240MHz,運算能力600DMIPS |
操作環境 |
-10°C 至 60°C |
尺寸 |
90 × 75 × 22 mm |
