Zortrax M200 Plus 3D Printer

Zortrax M200 Plus 3D Printer

NT$99,600
NT$89,600
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
Quantity Product set quantity

Buy Together and Save More (At most {{ addItemQuantity }} item(s))

凡購買Zortrax列印機,皆可加購8000得一台Mayku FormBox真空成型機(原價23,800)
Sale NT$8,000

魔速洗清洗劑/3D列印清洗劑/樹脂清洗劑 - 1KG(適用SLA/DLP/LCD光固化3D列印成品)
Sale NT$250

The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.

Description

3D Printers

Zortrax M200 Plus

A high-performance desktop 3D printer with Wi-Fi connectivity.

Device features:

  • 3D printing farms ready
  • Wi-Fi, Ethernet and USB connection
  • Built-in camera

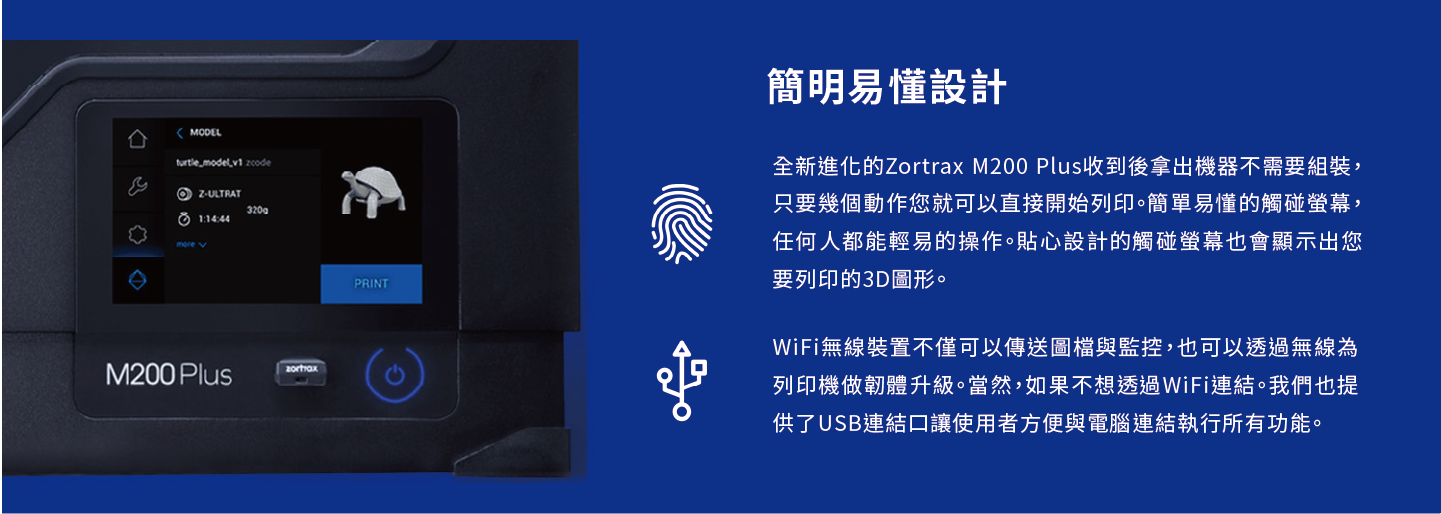

  • User-friendly design of the touchscreen
  • Material End Detection
  • Upgraded extruder (compatible with advanced and semi-flexible filaments)
  • Upgraded cooling system (double fan and extruder cooling)
  • Upgraded hotend (V3) and nozzle with new geometry
  • Perforated plate with pogopins instead of small connector
  • Wide range of dedicated filaments
  • External materials are applicable

Description

The New High-Performance 3D Printer

An advanced desktop 3D printer for low-volume production and large scale additive manufacturing. Based on the globally acclaimed Zortrax M200 printer, this model retains its high performance, remarkable accuracy and consistency, while adding wireless connectivity using Z-SUITE slicing software. It’s also equipped with a built-in camera to manage the printing progress and a user-friendly touchscreen interface and at the same time adds wireless connectivity that helps monitor the printer via Z-SUITE slicing software. Side Covers are included.

Dedicated filaments: Z-ABS, Z-HIPS, Z-ULTRAT, Z-PETG, Z-GLASS, Z-ESD, Z-PLA Pro, Z-ASA Pro, Z-PCABS, Z-FLEX

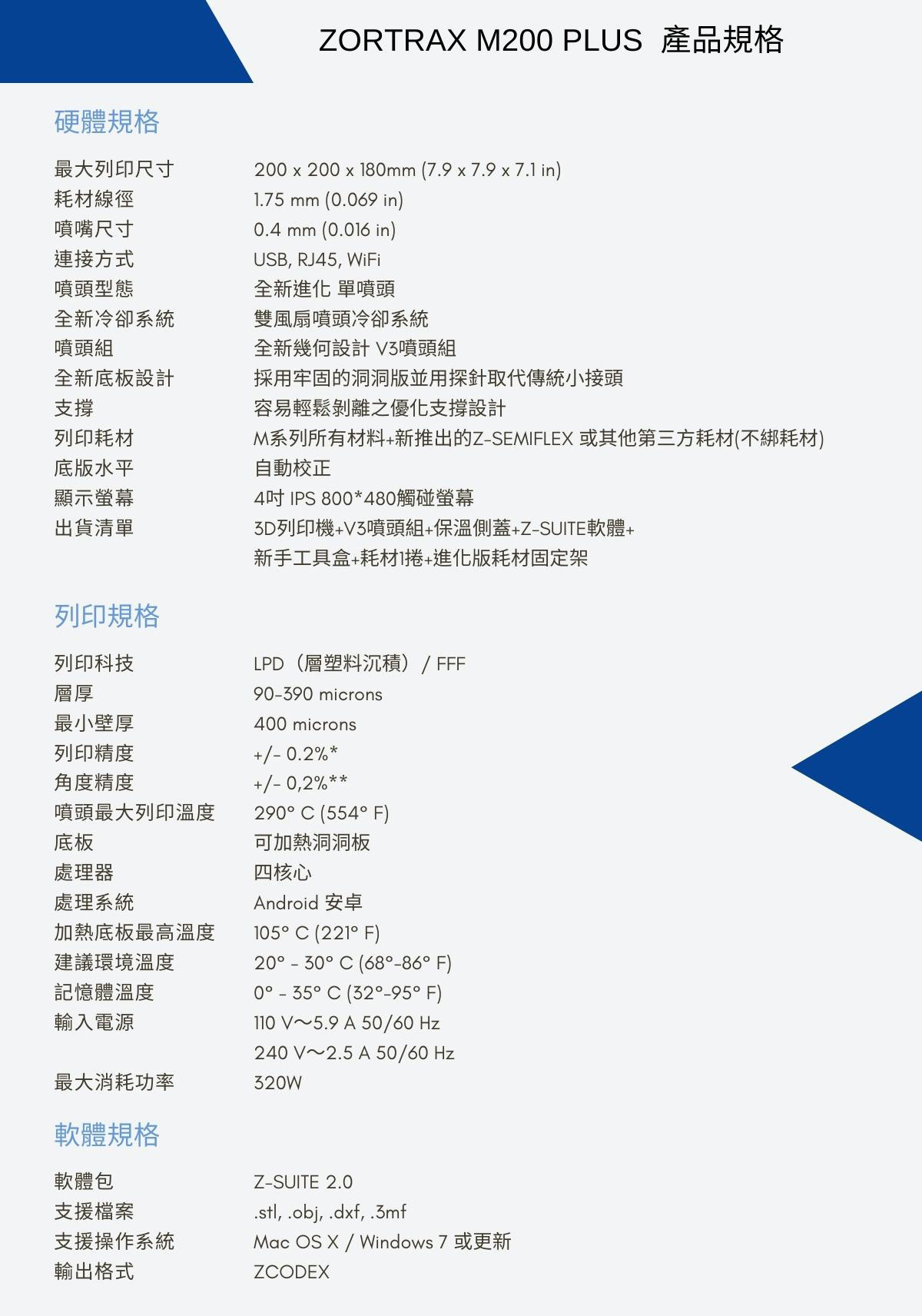

Specification

Device features

Build volume
200 x 200 x 180 mm (7.9 x 7.9 x 7.1 in)
Material container
Spool
Material diameter
1,75 mm (0.069 in)
Nozzle diameter
0,4 mm (0.016 in)
Support
Mechanically removed - printed with the same material as the model
Extruder
Single (upgraded for more demanding materials)
Extruder cooling system
Radial fan cooling the extruder block
Hotend
Redesigned (v3), new geometry of the nozzle
Material endstop
Mechanical
Platform
Perforated, heated, equipped with Pogo pins
Connectivity
WI-FI, USB, Ethernet,
Operating system
Android
Processor
Quad Core
Touchscreen
4'' IPS 800 x 480
Camera
Yes, 640 x 480
Available materials
Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD, Z-PCABS, Z-ABS, Z-ASA Pro, Z-PLA Pro
External materials
Applicable
In the box
3D printer, spool of material, side covers, USB flash drive, build platform, heatbed cable, power cable, spool holder, material guide, quick start guide, Z-SUITE 2 software, starter kit

Weight and physical dimensions

3D printer (W x D x H)
350 x 360 x 505 mm (13.8 x 14.2 x 19.9 in)
With a spool
350 x 430 x 505 mm (13.8 x 16.9 x 19.9 in)
Shipping box
470 x 480 x 570 mm (18.5 x 18.9 x 22.4 in)
Shipping weight
26 kg (57.3 lb)
Printer weight*
16 kg (35 lb)

Printing

Technology
LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution
90-390 microns
Minimal optimal wall thickness
800 microns
Minimal wall thickness
400 microns
Dimensional accuracy
+/- 0.2%**
Angle accuracy
+/- 0.2%***
X/Y positioning accuracy
1.5 micron
Z-axis single step
1.25 micron
Platform levelling
Automatic measurement of platform points' height
Maximum platform temperature
105 ˚C (221 °F)
Maximum printing temperature (extruder)
290 ˚C (554 °F)
Ambient operation temperature
20 - 30 ˚C (68 - 86 °F)
Storage temperature
0 - 35 ˚C (32 - 95 ˚F)
AC input
110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5A 50/60 Hz
Power supply parameters
24 V DC @ 14 A, 500 W
Maximum power consumption
320 W

Software

Software bundle
Z-SUITE 2
Supported file types
.stl, .obj, .dxf, .3mf
Supported operating systems
Mac OS X / Windows 7 and newer versions

Additional information

Each delivered printer may have worked up to 50 hours during the quality control test prints.
* The weight includes: the device with the platform, power cable and spool holder installed. It does not include the material spool.
** It should be noted that the model’s dimensions strongly depend on the technical condition of the printer as well as the shape, form and size of a print, the material used and the printing process conditions. The Z-axis accuracy does not include a tolerance of +/- one layer. Bear in mind errors of measurement and measuring equipment.
*** measurements were taken with an angle of 90˚.
